PLC Controlled Electric Heating Rubber Calender Machine with Customizable Design for Efficient Rubber Calendering

Brand Name : SFC

Model Number : XY-1400

Certification : CE、ISO9001、SGS

Place of Origin : China

MOQ : 1

Price : US$20000-80000

Payment Terms : T/T

Supply Ability : 500sets/year

Delivery Time : 45 days

Packaging Details : Standard packaging.

Control System : PLC

Heating Method : Electric

Material : Carbon Steel/Stainless Steel

Power : 110

Operation Mode : Automatic

Product Name : Rubber Calender Machine

Size : 6500*1970*2740

Voltage : 380V

Warranty : 1 Year

Contact Now

Ease Of Maintenance Rubber Calender Machine Customization

Advanced Features & Customization

Our rubber calender machines incorporate heating and cooling systems within the rolls to precisely control temperature during the calendering process. The machine design is customized to facilitate maintenance tasks, providing easy access to calender rolls, lubrication points, and control systems to minimize downtime and ensure efficient upkeep.

Temperature control systems and cooling mechanisms for enhanced process control
Trimming devices to achieve desired final product specifications
Cooling and winding systems using air or water cooling to stabilize rubber properties
Advanced process control and automation with recipe management and data logging
Integration capabilities with other production line equipment

Customization Options

Our 1400mm calender machines can be further customized with additional features including:

Additional rolls for specific processes (e.g., four-roll calenders)
Specialized surface patterns or textures on the rolls
Auxiliary equipment for edge trimming or surface finishing

Ayla

Business Manager

sales-6@sfcjx.com

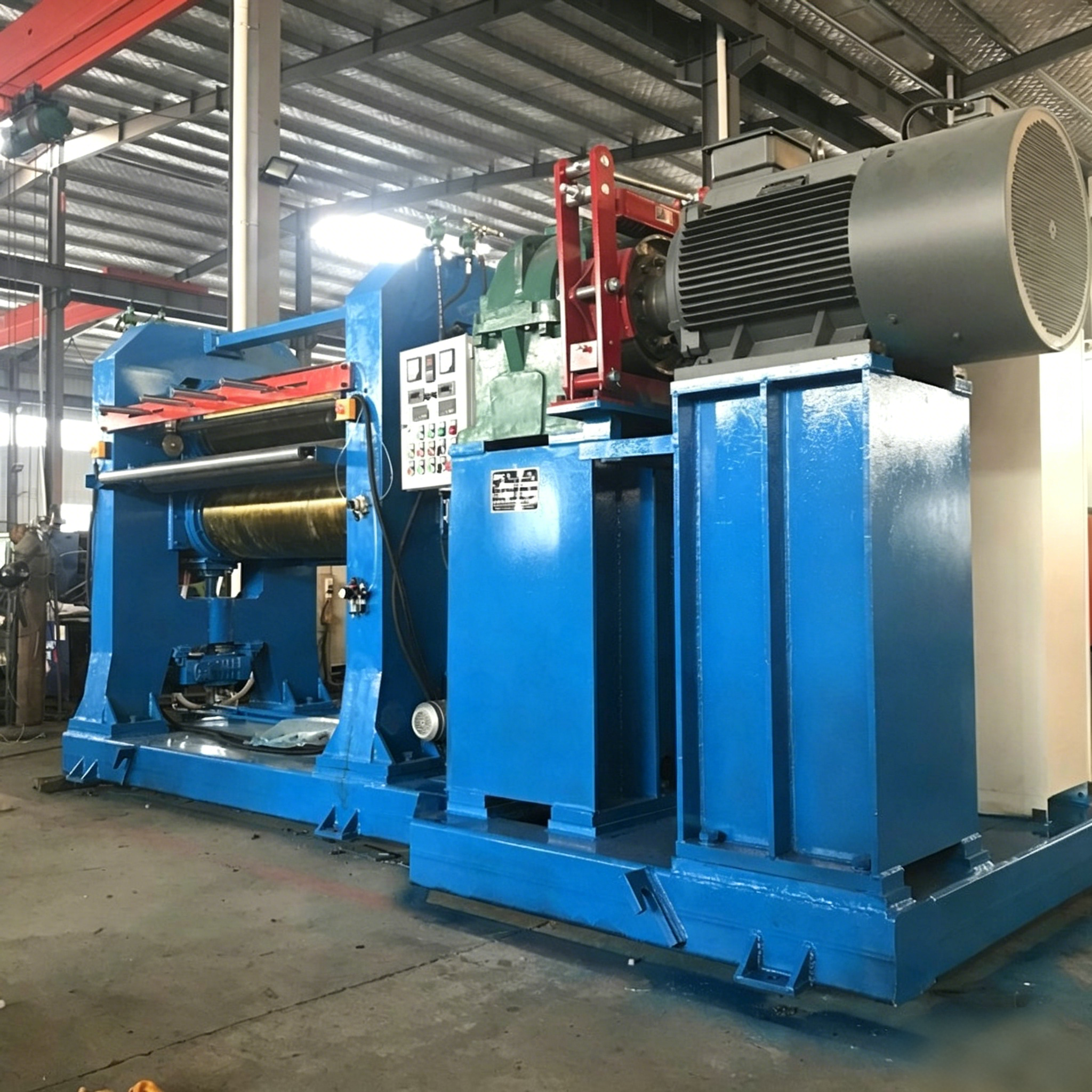

Reference Photos

PLC Controlled Electric Heating Rubber Calender Machine with Customizable Design for Efficient Rubber Calendering

Technical Specifications

Two Roller Calender

Model	Roller Diameter (mm)	Roller Working Length (mm)	Speed Ratio	Roller Linear Speed (r/mm)	Min. Thickness of Products (mm)	Products Width (mm)	Main Motor Power (KW)
XY-2I 320	160	320	1:1	7.79	0.2	250	5.5
XY-2I 630	230	630	1:1	14.8	0.2	580	15
XY-2I 1120	360	1120	1:1	3-20.2	0.2	920	37
XY-2I 1500	450	1500	1:1	2.5-24.8	0.2	1250	45
XY-2I 1830	550	1830	1:1.08	2-18.7	0.2	1600	75
XY-2I 1730	610	1730	1:1	4-36	0.2	1500	90

Three Roller Calender

Model	Roller Diameter × Length (mm)	Speed Ratio	Middle Roller Linear Speed (RPM)	Min. Thickness of Products (mm)	Product Width (mm)	Motor Power (KW)
XY-630	230 × 630	1:1:1 1:1.42:1	0.8-8	0.2	100-500	7.5
XY-900	360 × 900	1:1:1 0.733:1:1 0.733:1:0.733	3-21.06	0.2	700	45
XY-1120	360 × 1120	1:1:1	1.5-15	0.2	920	45
XY-1400	400 × 1400	1:1:1 1:1.383:1.383 1:1.383:1	3-26.39	0.2	1200	55
XY-1500	450 × 1500	1:1:1 1:1.5:1	2.62-26.2	0.2	1300	75
XY-1730	610 × 1730	1:1:1 1:1.4:1	5.4-54	0.15	1530	132
XY-2130	710 × 2130	1:1:1	8-50	0.15	1900	185
XY-2430	810 × 2430	1:1:1 1:1.5:1	2-20	0.15	2150

Four Roller Calender

Model	Roller Size (mm)	Speed Ratio	Middle Roller Speed (RPM)	Min. Thickness of Product (mm)	Products Width (mm)	Main Motor Power (KW)
XY-4 630	230×630	1:1:1:1	2.1-21	0.2	100-500	55
XY-4 1120	360×1120	0.73:1:1:0.73	2-20.1	0.2	500-920	55
XY-4 1400	400×1400	1:1.383:1.383:1	3-26.3	0.2	1200	75
XY-4 1500	450×1500	1:1.5:1.5:1	2.5-25	0.2	1250	110
XY-4 1730	610×1730	1:1.4:1.4:1 1:1.4:1.4:1.4	8-50	0.15	1500	160
XY-4 2130	710×2130	1:1.48:1.48:1 1:1.48:1.48:1.4	8-50	0.15	1900	185
XY-4 2430	810×2430	1:1.5:1.5:1	2-20	0.15	2150	280

Company Profile

Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd is located in Kangting Road No. 1, West Coast New District, Qingdao, China. We are a specialized high-tech backbone enterprise in rubber machinery production, having passed ISO9001:2015 quality management system certification, European Union CE certification, and Switzerland SGS certification.

Industry Coverage

Tire manufacturing
Rubber conveyor belt production
Various rubber products
Tire refurbished manufacturing
Waste tire recycling

Main Equipment

Rubber Kneader
Rubber Mixing Machine
Rubber Vulcanizing Press
Batch Off Cooler
Rubber Calender
Waste Tire Crusher
Rubber Extruder
Rubber Strainer

Global Reach

Our products are exported to over 50 countries and regions including Britain, Switzerland, USA, Germany, Brazil, Singapore, Malaysia, India, Russia, Ukraine, Uzbekistan, and Kazakhstan, earning praise and long-term cooperation from domestic and international customers.

Quality Commitment

Every component passes strict quality inspection before storage
All products undergo overload trial running before shipment
Comprehensive free technical support for all products
3-year warranty for main parts, 1-year warranty for wearing parts
Immediate technical support via internet or telephone, with on-site repair if needed

Certification & Facilities
