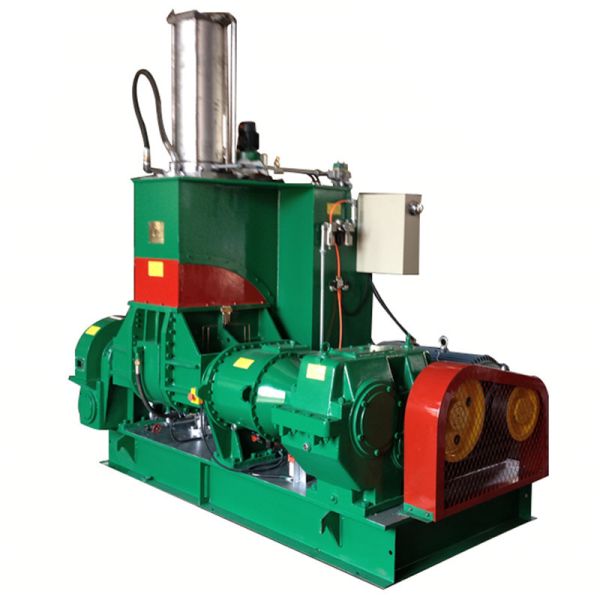

Rubber Kneader Machine with Higher Efficiency
X(S)-110 X30 Higher Efficiency Rubber Kneader Machine / EVA Rubber Kneader / Silicone Rubber Vacuum Kneader
Product Introduction
- This machine is suitable for mixing and internal mixing of plastics, rubber, plastics and other chemical industrial raw materials. It can mix all kinds of liquid, solid and powder raw materials together, which is convenient for rubber mixing in the next process.
- Double blades with special spiral angle, proper clearance & high cooling effect gives excellent dispersion which can not be obtained from an open mill. Its production is 4 to 5 times more than an ordinary mixing mill thus saving on labor and electricity.
- The Kneader has a common bed plate for all parts and not require foundation.
- Mixing chamber can be tilted down for 140 degrees, which enables easy cleaning, because of this, different coloured compounds can be made without trouble.
Product Parameters
| Model |
X(S)N-20x32 |
X(S)N-25x32 |
X(S)N-35x30 |
X(S)N-55x30 |
X(S)N-75x30 |
X(S)N-110x30 |
X(S)N-150x30 |
X(S)N-200x30 |
| Total Volume of Mixing Chamber (L) |
45 |
55 |
75 |
125 |
170 |
250 |
325 |
440 |
| Working Volume of Mixing Chamber (L) |
20 |
25 |
35 |
55 |
75 |
110 |
150 |
200 |
| Driving Motor Power (KW) |
37 |
37 |
55 |
75 |
110 |
185 |
220 |
280 |
| Titling Motor Power (KW) |
1.5 |
1.5 |
2.2 |
2.2 |
4 |
5.5 |
11 |
11 |
| Rotational Speed of The Rotor (front/rear) (r/min) |
32/27 |
32/27 |
30/24.5 |
30/24.5 |
30/24.5 |
30/24.5 |
30/24.5 |
30/24.5 |
| Pressure of Compressed Air (m³/min) |
≥0.7 |
≥0.7 |
≥0.9 |
≥1.0 |
≥1.0 |
≥1.5 |
≥2.0 |
≥4.0 |
| Pressure of Cooling Water(mixing rubber) (MPa) |
0.2~0.4 |
0.2~0.4 |
0.3~0.4 |
0.3~0.4 |
0.3~0.4 |
0.3~0.4 |
0.3~0.4 |
0.3~0.4 |
| Pressure of Heating Steam (plastic mixing) (MPa) |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
| Dimensions(LxWxH) (mm) |
2675x1650x2560 |
2675x1650x2560 |
3200x1900x2950 |
3230x1927x2958 |
3325x2615x3150 |
4075x2712x3580 |
4250x2750x4106 |
4250x3400x4215 |
| Gross Weight (T) |
~4 |
~4.5 |
~6.3 |
~7.1 |
~9.5 |
~14.9 |
~19.5 |
~22.5 |
About Us
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd is a Chinese manufacturer established in 2007, with over 10 years of experience in making various rubber machines. We have passed ISO 9001:2008, SGS, and CE certifications.
Our factory specializes in rubber kneader/rubber mixing mill; various plate vulcanizing press; 2 roll/3 roll/4 roll rubber calender; rubber batch off cooler; waste tire recycling line; reclaimed rubber production line; conveyor belt production line; rubber seals extruding & vulcanizing line etc.
Market: Our machineries have exported to America, Mexico, India, Vietnam, South Africa, Singapore, Malaysia, Indonesia, Australia, Sri Lanka and many other countries and regions.
Product quality and after-sales service are the key to survival of Qingdao Shun Cheong Machinery Co., Ltd, and also are top priorities of management of the company. The company commitment to all customers as follows:
- Every parts pass strict quality inspection before storage.
- All the products overload trial running before shipment, such as Plate Vulcanizing Press, to test pressure for 24 hours under 1.25 times the rated working pressure. Rubber Mixing Mill, rubber mixing 20 minutes under 1.1 times amount of the rated mixing rubber etc.
- The whole body of all products are with free technical support.
- The warranty period of 3 years for main parts, wearing parts for 1 year warranty.
- The products issues quality problems in the use process, first of all, our sales staff and engineers through the Internet or telephone guidance service, if not solve we will find a local agent or factory's engineer to door repair for the first time! In order to better serve customers, the company provides conveyor belt, waste tire recycling line and tire and other rubber products production site for customers to visit, consultation.
Our Service
- Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
- In the process of production, we will take photos and send to customers for their track the progress.
- Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
- We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
