Product instruction

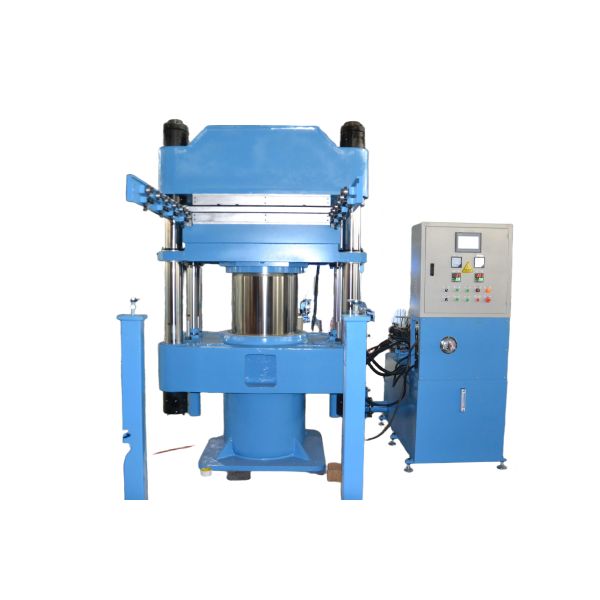

Plate Vulcanizing Press is used for hot vulcanization of various rubber products. Hydraulic driving with evenly heated platens and precise temperature control. Optional intelligent control and multi-exhaust structure. Stable pressure, low failure rate, easy operation and maintenance, compatible with different rubber materials.
Technical data
| Model |
Total Pressure (MN) |
Daylight (mm) |
Working Layer |
Piston Stroke (mm) |
Overall Dimension (L*W*H)(mm) |
| XLB-350*350*2 |
0.25 |
125 |
2 |
250 |
1200*580*1200 |
| XLB-400*400*2 |
0.50 |
125 |
2 |
250 |
1400*500*1400 |
| XLB-600*600*2 |
1.00 |
125 |
2 |
250 |
1880*820*1680 |
| XLB-750*850*4 |
1.60 |
125 |
4 |
500 |
1730*930*2460 |
| XLB-900*900*2 |
2.50 |
200 |
2 |
400 |
2345*960*1385 |
| XLB-1200*1200*1 |
3.15 |
300 |
1 |
300 |
2800*1300*2300 |
| XLB-1300*2000*1 |
5.60 |
400 |
1 |
400 |
2000*1860*2500 |
| XLB-1500*1500*1 |
8.00 |
800 |
1 |
800 |
2200*2200*4300 |
| XLB-1500*2500*1 |
15.00 |
400 |
1 |
400 |
3000*2500*3300 |
| XLB-2000*2000*1 |
20.00 |
400 |
1 |
400 |
3600*3000*3300 |
Product advantages
- It provides sufficient and uniform pressure. The finished products are compact and smooth with no bubbles or deformation, ensuring high qualification rate.
- With automatic pressure compensation and holding system, the pressure stays constant during curing, ensuring consistent product size and stability.
- Intelligent PLC control system supports adjustable temperature, time, pressure and exhaust times. Auto/manual dual modes make operation simple and efficient.
Company instruction
Qingdao Shun Cheong Rubber Machinery Manufacturing Co,LTD is located in Qingdao west coast new economic distrect,witch is a high-tech enterprise “specializing and New “ENterprise,Nation"High-tech"Enterprise,etc. has been achieved,trademark “顺富昌" registered, and has passed ISO9001:2015 quality system certification , Swiss SGS certification and CE export certication . All the machines are designed with 3D software and are not only sold all over the country ,but also exported to the United States ,Britain ,Russia , the Netherlands , Thailang ,Malaysia , Indonesia , Chile , Mexico , Uzbekistan , France and many other countries and regions .
The main products of our company including new banbury mixer , rubber mixing mill ,vulcanizing press , rubber calender , batch of cooler , rubber kneader , forced feeding straining extruder ,new waste tire recycling line , reclaimed rubber equipment etc . , and can design and manufacture various special rubber machinery according to customer requirements.
Certification
Our Services
- Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost
- In the process of production, we will take photos and send to customers for their track the progress.
- Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
- We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
- We supply overseas engineer service and help to train your workers to operate the machine.
