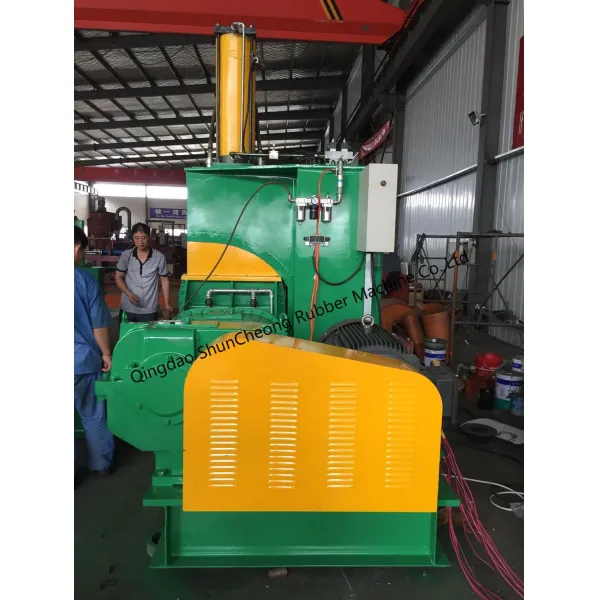

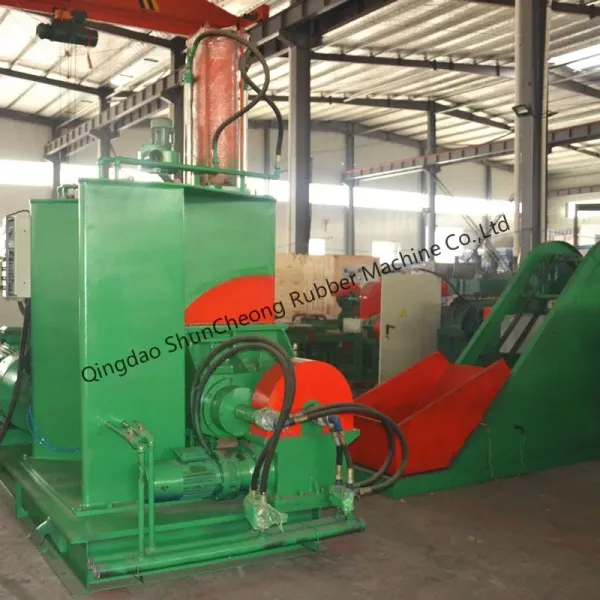

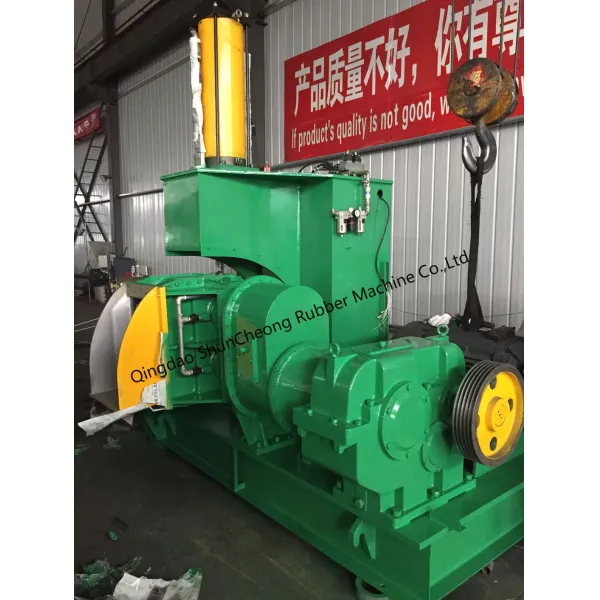

Rubber Dispersion Kneader, Internal Mixer, Rubber Kneader Machine
Basic Information
Model No.: X(S)N-35L
Automatic Grade: Automatic
Power Source: Electric
Type: Rubber Mixer
Type of General Rubber Machinery: Material Processing Machine
Working Volume of Mixing Chamber: 35L
Rotational Speed of The Rotor (Front): 36 RPM
Transport Package: Standard Export Packing
Specification: According to Customer Requirements
Trademark: SFC
Origin: China
HS Code: 8477800000
Product Overview
The Rubber Dispersion Kneader is an advanced internal mixing machine designed for the rubber and plastics industry. Available in models X(S)N-35, X(S)N-55, X(S)N-75, and X(S)N-110, this equipment meets national standards and offers superior performance comparable to international products.
Key Features
- Designed for plasticizing and mixing natural rubber, synthetic rubber, reclaimed rubber, plastics, and foaming plastics
- Rotor supported by rolling bearings for easy maintenance and extended service life
- Transmission system uses NGW hard tooth flank planet reducer for compact design, low noise, and high efficiency
- Advanced sealing design provides excellent and long-lasting performance
- Compact construction with small footprint, easy installation, high production efficiency, and simple operation
Technical Specifications
| Specification |
X(S)N-35L |
X(S)N-55L |
X(S)N-75L |
X(S)N-110L |
| Total volume of mixing chamber (L) |
75 |
125 |
180 |
250 |
| Working volume of mixing chamber (L) |
35 |
55 |
75 |
110 |
| Rotational speed of the rotor (front) (r/min) |
36 |
36 |
36 |
30 |
| Rotational speed of the rotor (rear) (r/min) |
30 |
30 |
30 |
24.5 |
| Driving motor power (KW) |
55 |
75 |
110 |
185 |
| Tilting angle |
110° |
110° |
110° |
110° |
| Size: Length* Width* Height |
3150*1900*2880 |
3280*2120*3090 |
3250*2120*3250 |
4075*2712*3580 |
After Sales Service
Warranty: One year guarantee with 24-hour response time for support and solutions.
Packaging
Equipment is painted before delivery and wrapped with stretch film to protect the surface. Wooden packaging is available upon request. Key components, including electronic control boxes, are protected with shockproof materials and packed in wooden cases.
Frequently Asked Questions
What does your factory do regarding quality control?
We implement comprehensive quality control throughout production. Every machine is fully assembled and thoroughly tested before shipment.
What's the machine quality guarantee?
One-year quality guarantee. We use world-famous brand components to ensure optimal machine performance.
Are you able to give installation and commissioning overseas? How long will it take?
Yes, we provide overseas service and technical support (customer covers installation costs). Small machines take 2-3 days; production lines take approximately 30 days.
How can I trust you to deliver the right machine as I ordered?
We deliver exactly as discussed and confirmed in orders. Our company culture emphasizes innovation, quality, integrity, and efficiency. We have extensive experience working with world-renowned rubber manufacturers.
How can we visit your facility?
We are located in Qingdao City, Shandong province, China, near Qingdao Jiaodong Airport. We provide airport pickup services for visiting clients.
Before leaving the factory, each machine undergoes 24-hour pressure testing to verify hydro-cylinder bearing capacity, piston stroke, and ensure no oil leakage or seepage issues.
