Automatic Grade Rubber Kneader with PLC Control Internal Mixer

Brand Name : SFC

Model Number : X (S) N -110*30

Certification : CE, ISO

Place of Origin : Qingdao, china

MOQ : 1 set

Price : US$22,500.00-33,000.00

Payment Terms : T/T,L/C

Supply Ability : 50 set/month

Delivery Time : 25-35 days

Packaging Details : Safety Wood or Plywood Crates Packing

Power : 10~100kw

Total Volume of Mixing Chamber : 110L

Specification : National Standard

Automatic Grade : Automatic

Customized : Customized

Contact Now

Bunbury Mixer, Rubber Mixer, Rubber Kneader

Professional Rubber Mixing Solutions

Our internal mixer machines, also known as rubber kneaders or dispersion mixers, provide reliable and efficient mixing for rubber and plastic materials.

Key Components & Features

Mixing Chamber: High-quality steel plate welded construction with chrome-plated inner surface and jacket structure for cooling/heating
Thermal Resistance: PLC-controlled temperature detection and monitoring system
Rotor Design: Banbury-style rotors with cooling/heating channels and wear-resistant carbide surfaces
Heating & Cooling: Integrated piping system for temperature control across rotor wings, mixing chamber, and ram room
Dust Sealing: Three-line floating oil film sealing prevents powder leakage
Main Transmission: Differential rotation speed system with motor, reducer, and gear box
Gas Control: PLC-controlled cylinder system with automatic overload protection
Electronic Control: Imported PLC devices and reliable electrical components

Company Advantages

20+ years of internal mixer manufacturing and exporting experience
35-day delivery guarantee
Secure wood/plywood crate packaging
Full transportation insurance coverage
Global reach across 126 countries on 6 continents
Complete rubber machinery solutions from Qingdao Shun Cheong

Technical Specifications

Item	Unit	X(S)N-35x30	X(S)N-55x30	X(S)N-75x30	X(S)N-110x30	X(S)N-150x30	X(S)N-200x30
Total Volume of Mixing Chamber	(L)	75	125	170	250	325	440
Working Volume of Mixing Chamber	(L)	35	55	75	110	150	200
Driving Motor Power	(KW)	55	75	110	185	220	280
Tilting Motor Power	(KW)	2.2	2.2	4	5.5	11	11
Rotational Speed of The Rotor (front/rear)	(r/min)	30/24.5	30/24.5	30/24.5	30/24.5	30/24.5	30/24.5
Pressure of Compressed Air	(m³/min)	≥0.9	≥1.0	≥1.0	≥1.5	≥2.0	≥4.0
Pressure of Cooling Water (mixing rubber)	(MPa)	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4
Pressure of Heating Steam (plastic mixing)	(MPa)	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8
Dimensions (L x W x H)	(mm)	3200x1900x2950	3230x1927x2958	3325x2615x3150	4075x2712x3580	4250x2750x4106	4250x3400x4215
Gross Weight	(t)	~6.3	~7.1	~9.5	~14.9	~19.5	~22.5

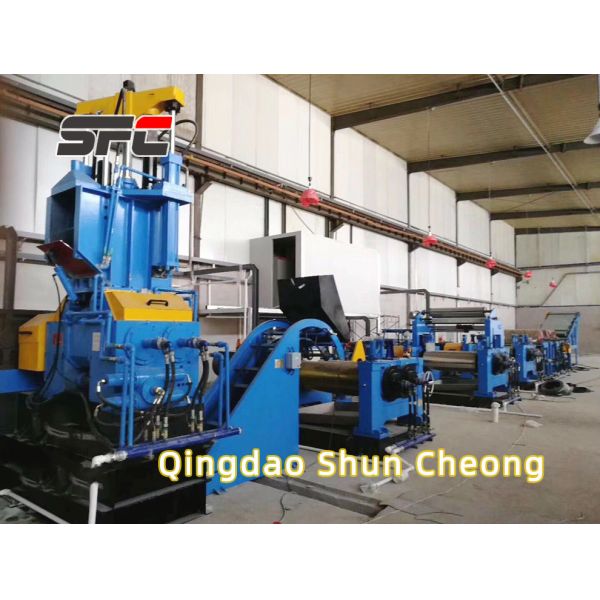

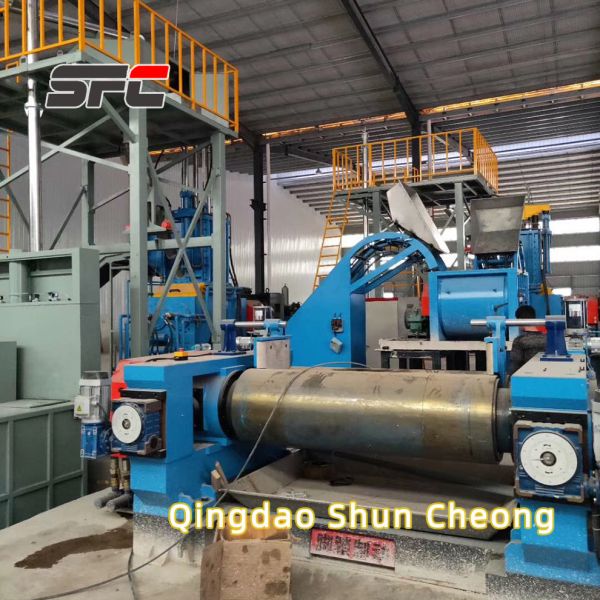

Product Images

Automatic Grade Rubber Kneader with PLC Control Internal Mixer

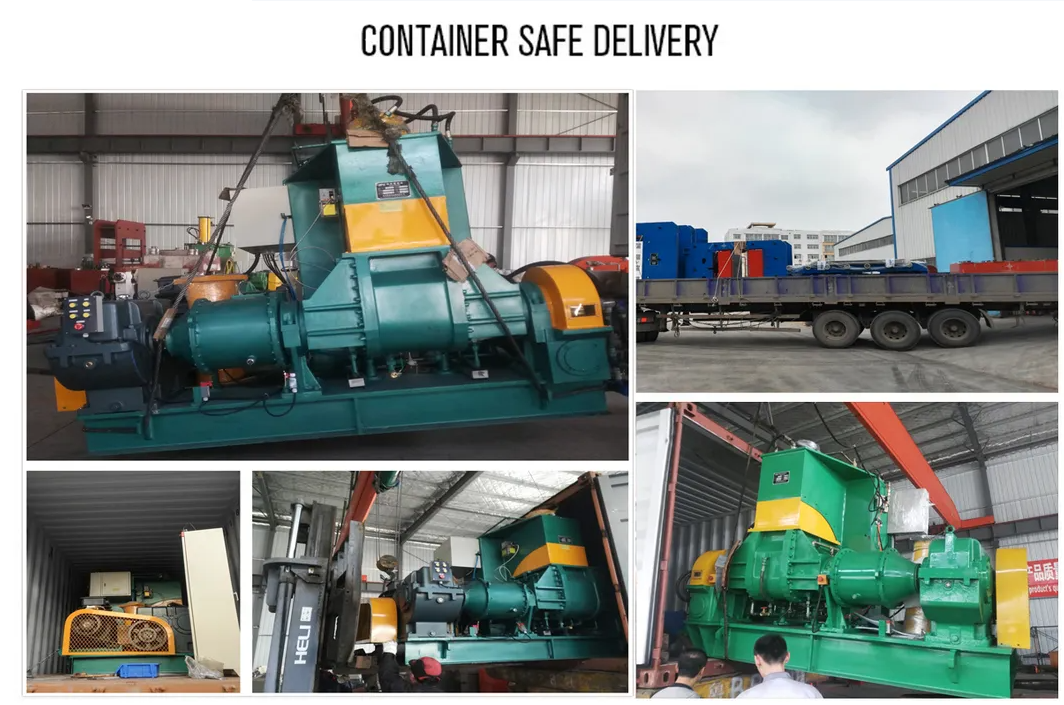

Packaging & Delivery

Equipment is painted and wrapped with stretch film to protect the surface finish. Custom wooden packaging is available. Key components, including electronic control boxes, are protected with shockproof materials and securely packed in wooden cases.
