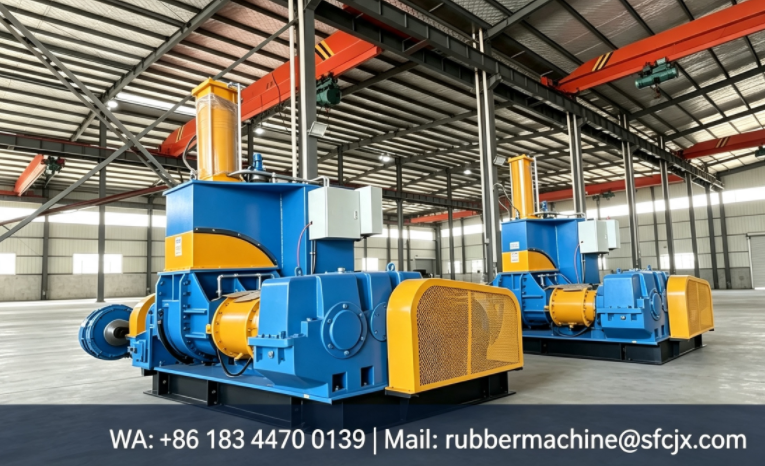

New Type Rubber Kneader
Product Overview
High-performance dispersion kneader designed for rubber and plastic processing with automated PLC control and robust construction.
Basic Specifications
Model Number: X(S)N-55L
Automation Grade: Automatic
Structure: Horizontal
Reducer Type: Hard Tooth Reducer
Control System: Auto PLC Control
Production Capacity: 50 Sets/Month
Origin: China
Trademark: SFC
Working Conditions
- Application: Primarily used for plasticating and mixing of rubber and plastics
- Rubber Viscosity: ≤ 80
- Power Source: AC380, 50Hz
- Production Water Pressure: 0.3~0.4MPa
- Air Pressure: 0.6~0.8MPa
Scope of Supply
- Main Machine: 1 set
- Control System: 1 set
Structural Features
- Pneumatic top material pressure control system
- Two-wing shear rotor design with alloy surfacing welding
- Hard chrome plating on rotor working parts with water cooling/heating
- Welded mixing chamber structure with hard chrome plating
- Thermocouple temperature measurement for precise control
- Electric tilt discharge system with worm gear drive
- Hard tooth surface reducer gear
- PLC control system for easy operation
Technical Specifications by Model
| Parameter |
Unit |
X(S)N-10X32 |
X(S)N-20X34 |
X(S)N-35X30 |
X(S)N-55X30 |
X(S)N-75X30 |
X(S)N-110X30 |
| Total Mixing Chamber Volume |
L |
25 |
45 |
75 |
125 |
180 |
250 |
| Working Volume of Mixing Chamber |
L |
10 |
20 |
35 |
55 |
75 |
110 |
| Driving Motor Power |
KW |
15 |
22 |
55/45 |
75/55 |
110/95 |
185 |
| Tilting Motor Power |
KW |
1.1 |
1.5 |
2.2 |
2.2 |
4 |
4 |
| Tilting Angle |
° |
140 |
140 |
140 |
140 |
140 |
140 |
| Rotational Speed (Front/Rear) |
r/min |
32/23.5 |
34/28 |
30/24.5 |
30/24.5 |
30/24.5 |
30/24.5 |
| Compressed Air Pressure |
MPa |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.6~0.8 |
0.6~0.8 |
0.6~0.8 |
| Compressed Air Capacity |
M³/min |
≥0.5 |
≥0.7 |
≥0.9 |
≥1.0 |
≥1.0 |
≥1.5 |
| Cooling Water Pressure (Rubber) |
MPa |
0.2~0.4 |
0.2~0.4 |
0.3~0.4 |
0.3~0.4 |
0.3~0.4 |
0.3~0.4 |
| Heating Steam Pressure (Plastics) |
MPa |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
| Length (Overall Dimensions) |
mm |
2580 |
1300 |
3200 |
3280 |
3330 |
3930 |
| Width (Overall Dimensions) |
mm |
1300 |
1520 |
1900 |
1930 |
2620 |
3000 |
| Height (Overall Dimensions) |
mm |
2280 |
2550 |
2950 |
3070 |
3340 |
3660 |
| Weight |
Kg |
3300 |
4500 |
6500 |
7500 |
10500 |
14500 |
Frequently Asked Questions
What does your factory do regarding quality control?
We implement comprehensive quality control throughout the entire production process. Every machine undergoes full assembly and rigorous testing before shipment to ensure optimal performance.
What's the machine quality guarantee?
We provide a one-year quality guarantee and use world-renowned brand components to maintain perfect working condition of our machinery.
Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we offer overseas installation services and technical support. Small machines typically require 2-3 days for installation, while larger production lines may take approximately 30 days. Installation costs are covered by the customer.
How can I trust you to deliver the right machine as I ordered?
We guarantee delivery of high-quality machinery exactly as discussed and confirmed in your order. Our company culture is built on innovation, quality, integrity, and efficiency. We have established successful partnerships with numerous world-renowned rubber production manufacturers and can provide references upon request.
How can we visit your facility?
We are located in Qingdao City, Shandong province, China, near Qingdao Liuting Airport. We provide airport pickup services for visiting clients.
