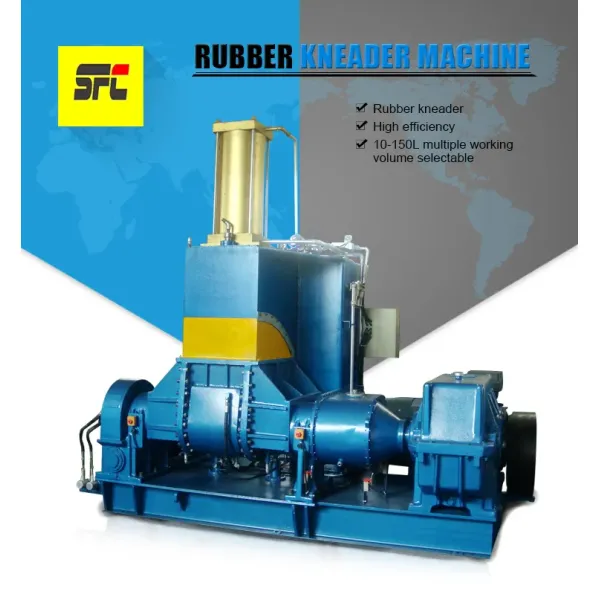

X(S)N-110L Rubber Kneader Machine / Kneader Mixer for Silicone
The X(S)N-110L Rubber Kneader Machine is a high-performance industrial mixer specifically designed for silicone and rubber processing applications, featuring advanced PLC control and robust construction.
Technical Specifications
| Model | X(S)N-110L |
| Certification | CCC, CE, ISO9001:2008 |
| Voltage | 380V |
| Structure | Vertical |
| Working Volume | 110L |
| Total Chamber Volume | 250L |
| Driving Motor Power | 185kW |
| Tilting Motor Power | 5.5kW |
| Rotor Speed | 32/24.5 rpm |
| Dimensions | 4075*2712*3580mm |
| Production Capacity | 10 sets/Year |
| Origin | Qingdao, China |
Structural Features
- Rotor wings welded by hard chrome and carbide alloy for enhanced durability
- Abrasion proof and corrosion proof construction
- Rubber stock discharged by tilting 140 degrees for efficient operation
- High efficiency design with energy saving and space-saving benefits
- Imported brand PLC control ensures optimal performance
- Interlock protection system minimizes personal injury risks
- Excellent sealing design prevents material leakage
- CE certified for quality assurance
Model Comparison
| Item |
Unit |
X(S)N-35x30 |
X(S)N-55x30 |
X(S)N-75x30 |
X(S)N-110x30 |
X(S)N-150x30 |
X(S)N-200x30 |
| Total Volume of Mixing Chamber | (L) | 75 | 125 | 170 | 250 | 325 | 440 |
| Working Volume of Mixing Chamber | (L) | 35 | 55 | 75 | 110 | 150 | 200 |
| Driving Motor Power | (KW) | 55 | 75 | 110 | 185 | 220 | 280 |
| Tilting Motor Power | (KW) | 2.2 | 2.2 | 4 | 5.5 | 11 | 11 |
| Rotational Speed of The Rotor (front/rear) | (r/min) | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 |
| Pressure of Compressed Air | (m³/min) | ≥0.9 | ≥1.0 | ≥1.0 | ≥1.5 | ≥2.0 | ≥4.0 |
| Pressure of Cooling Water (mixing rubber) | (MPa) | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 |
| Pressure of Heating Steam (plastic mixing) | (MPa) | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 |
| Dimensions (L x W x H) | (mm) | 3200x1900x2950 | 3230x1927x2958 | 3325x2615x3150 | 4075x2712x3580 | 4250x2750x4106 | 4250x3400x4215 |
| Gross Weight | (t) | ~6.3 | ~7.1 | ~9.5 | ~14.9 | ~19.5 | ~22.5 |
Frequently Asked Questions
Delivery time of the rubber machines?
This is a specially designed machine according to your specific requirements. From engineer designing to production completion, it needs about 25 to 35 days.
What does your factory do regarding quality control?
We prioritize quality control from the very beginning to the end of production. Every machine is fully assembled and carefully tested before shipment.
What's the machine quality guarantee?
Quality guarantee time is one year. We choose world famous brand components to keep our machine in perfect working condition.
Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the installation cost. Small machines usually take 2-3 days, while larger plants take about 30 days.
How can I trust you to deliver the right machine as I ordered?
We absolutely deliver quality machines as discussed and confirmed in the order. Our company culture emphasizes innovation, quality, integrity and efficiency. We have extensive experience working with world famous rubber production manufacturers.
How can we visit your factory?
We are located in Qingdao City, Shandong province, China, near Qingdao Liuting airport. We provide airport pickup services for visiting clients.
Our machinery has been exported to America, Mexico, India, Vietnam, South Africa, Singapore, Malaysia, Indonesia, Australia, Sri Lanka and many other countries worldwide.
Welcome to Visit Our Factory!
