Multi-Zone Temperature Control Frame-type Rubber Vulcanizing Press Machine with PLC Control and Customizable Pressure Range

Brand Name : SFC

Model Number : XLB-1300x2000 x1

Certification : CE、ISO9001、SGS

Place of Origin : China

MOQ : 1

Price : US$5999.00-89999.00/set(FOB)

Payment Terms : T/T

Supply Ability : 500 sets/year

Delivery Time : 45 days

Packaging Details : Export standard packaging.

Control System : PLC

Cylinder Stroke : Customized

Heating Method : Electric/Steam/Oil

Material : Carbon Steel/Stainless Steel

Operation Mode : Manual/Semi-automatic/Automatic

Power : 7.5-75KW

Pressure Range : 0-100MPa

Product Name : Rubber Vulcanizing Press Machine

Size : Customized

Temperature Range : 0-400℃

Voltage : 220V/380V/440V

Warranty : 1 Year

Weight : Customized

Contact Now

Multi-Zone Temperature Control Frame-type Plate Rubber Vulcanizing Press Machine Customization
Ayla - Business Manager
sales-6@sfcjx.com
This machine is designed for pressing rubber mold products and thermosetting plastic products with corresponding specifications of seals, engineering rubber, rubber sheets, and more. The series features large pressure per unit area to ensure product quality. Depending on product process requirements, a push-pull die device can be configured to reduce labor intensity. Control options include manual control, electric control, or PLC control based on customer requirements.
Key Features
Automation and Control
Customizable with advanced automation features including programmable logic controllers (PLCs), touch-screen interfaces, data logging capabilities, and remote monitoring options for improved operational efficiency and ease of use.
Customizable Accessories
Various accessories available including mold holders, mold temperature control units, loading and unloading systems, and other auxiliary equipment tailored to specific production needs. You are welcome to visit our factory.

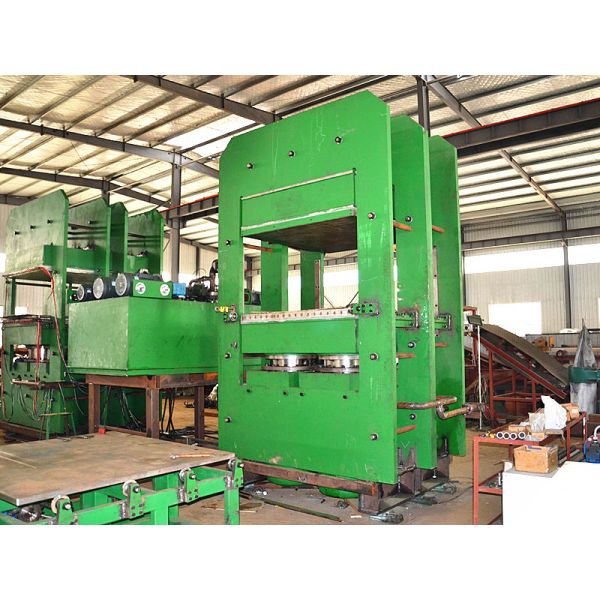

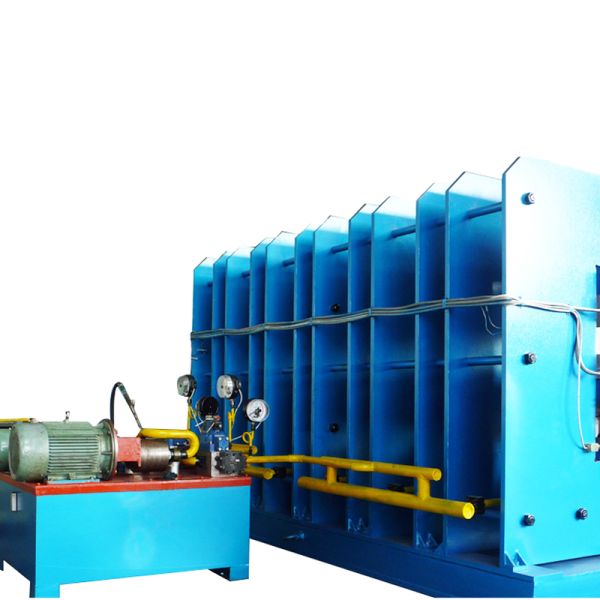

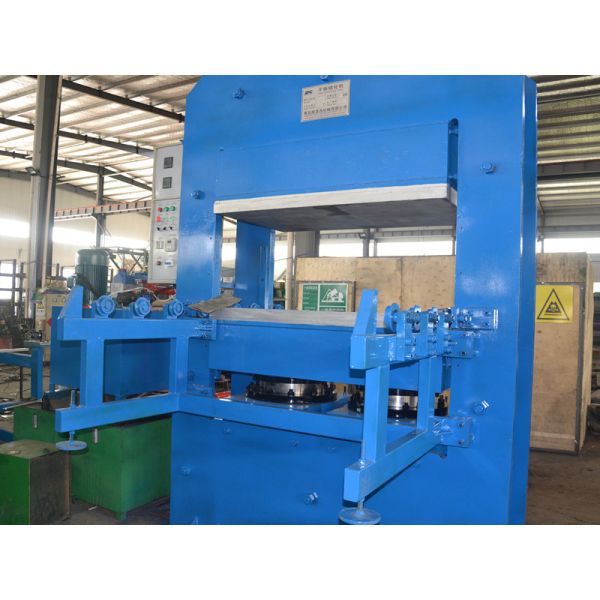

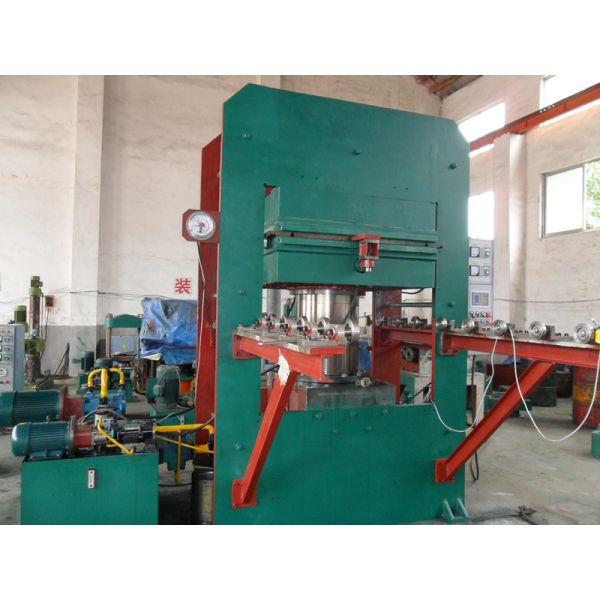

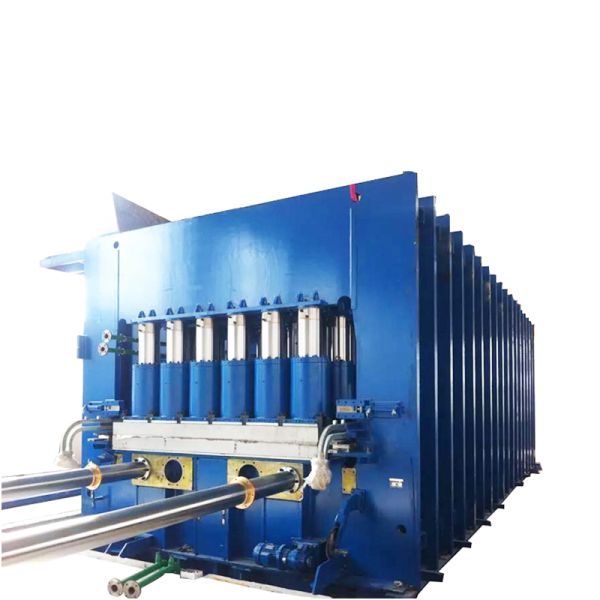

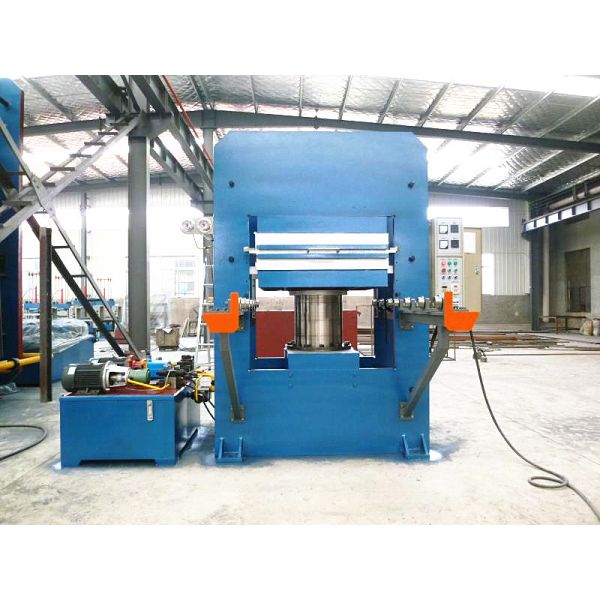

Reference Photos
Multi-Zone Temperature Control Frame-type Rubber Vulcanizing Press Machine with PLC Control and Customizable Pressure Range Multi-Zone Temperature Control Frame-type Rubber Vulcanizing Press Machine with PLC Control and Customizable Pressure Range Multi-Zone Temperature Control Frame-type Rubber Vulcanizing Press Machine with PLC Control and Customizable Pressure Range Multi-Zone Temperature Control Frame-type Rubber Vulcanizing Press Machine with PLC Control and Customizable Pressure Range Multi-Zone Temperature Control Frame-type Rubber Vulcanizing Press Machine with PLC Control and Customizable Pressure Range Multi-Zone Temperature Control Frame-type Rubber Vulcanizing Press Machine with PLC Control and Customizable Pressure Range Multi-Zone Temperature Control Frame-type Rubber Vulcanizing Press Machine with PLC Control and Customizable Pressure Range Multi-Zone Temperature Control Frame-type Rubber Vulcanizing Press Machine with PLC Control and Customizable Pressure Range Multi-Zone Temperature Control Frame-type Rubber Vulcanizing Press Machine with PLC Control and Customizable Pressure Range Multi-Zone Temperature Control Frame-type Rubber Vulcanizing Press Machine with PLC Control and Customizable Pressure Range Multi-Zone Temperature Control Frame-type Rubber Vulcanizing Press Machine with PLC Control and Customizable Pressure Range
Technical Parameters
Product Model XLB-1300x2000 x1 XLB-1500x1500x1 XLB-1500x2500x1 XLB-2000x2000x1
Total Press (MN) 5.60 8.00 15.00 20.00
Plate Size(mm) 1300x2000 1500x1500 1500x2500 2000x2000
Plate Daylight (mm) 400 800 400 400
Working Layer 1 1 1 1
Piston Stroke(mm) 400 800 400 400
Unit Press(Mpa) 2.2 3.6 4.0 5.0
Main Motor Power(kw) 8 16.5 11 11
Overall Size(mm) 2000x1860x2500 2200x2200x4300 3000x2500x3300 3600x3000x3300
Company Profile
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd is located in Kangting Road No. 1, West Coast New District, Qingdao, China. We are a specialized producer of rubber machinery and a high-tech backbone enterprise. The company has passed ISO9001:2015 quality management system certification, European Union CE certification, and Switzerland SGS certification.
Product Range
  • Tire manufacturing equipment
  • Rubber conveyor belt production machinery
  • Various rubber products manufacturing equipment
  • Tire refurbished manufacturing systems
  • Waste tire recycling equipment
Main Equipment
  • Rubber Kneader
  • Rubber Mixing Machine
  • Rubber Vulcanizing Press
  • Batch Off Cooler
  • Rubber Calender
  • Waste Tire Crusher
  • Rubber Extruder
  • Rubber Strainer
Our products are exported to over 50 countries and regions including Britain, Switzerland, USA, Germany, Brazil, Singapore, Malaysia, India, Russia, Ukraine, Uzbekistan, and Kazakhstan, earning praise and long-term cooperation from domestic and international customers.
Quality Commitment
  • Every part passes strict quality inspection before storage
  • All products undergo overload trial running before shipment
  • Comprehensive free technical support for all products
  • 3-year warranty for main parts, 1-year warranty for wearing parts
  • Immediate technical support and on-site repair services when needed
  • Factory visits available for conveyor belt, waste tire recycling, and rubber product production consultation
Certifications & Facilities
Multi-Zone Temperature Control Frame-type Rubber Vulcanizing Press Machine with PLC Control and Customizable Pressure Range Multi-Zone Temperature Control Frame-type Rubber Vulcanizing Press Machine with PLC Control and Customizable Pressure Range Multi-Zone Temperature Control Frame-type Rubber Vulcanizing Press Machine with PLC Control and Customizable Pressure Range
