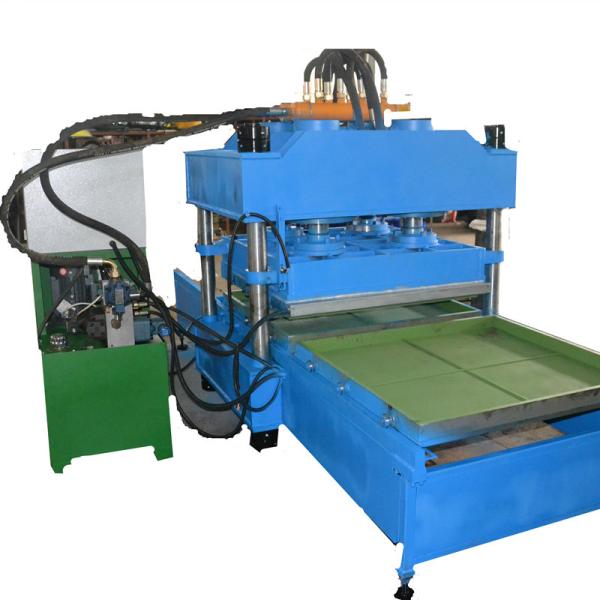

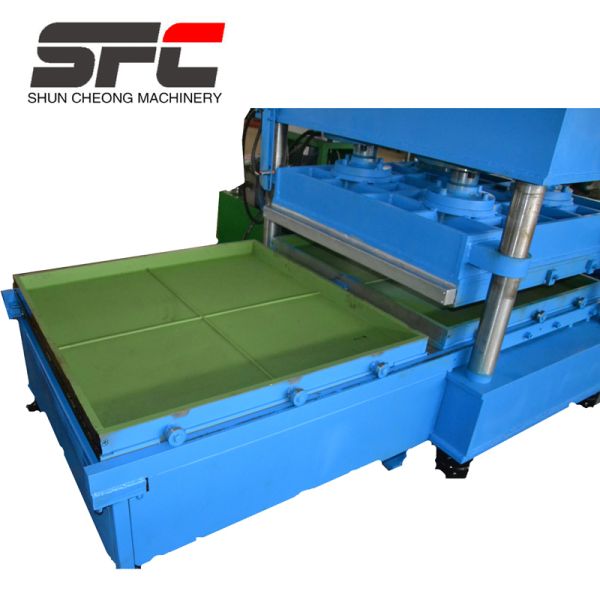

XLB-D550X550 Rubber Tiles Vulcanizing Press Machine Customizable
Product Introduction
- Upright column: Made from high-grade 45# steel with increased strength and drawing force after hardening and tempering
- Plunger piston: Oil cylinder material is QT500-7 with cylinder diameter Φ200mm; surface quenching treatment enhances hardness and abrasion resistance
- Oil cylinder and platform: Constructed from QT500-7 material treated by high temperature
- Natural hot plate: Uses Q235A high-quality carbon steel with excellent surface smoothness and high abrasive resistance after high-temperature tempering
- Sealing element: YX polyurethane oil seal provides oil resistance, aging resistance, and wear resistance
- Custom non-standard equipment available upon request

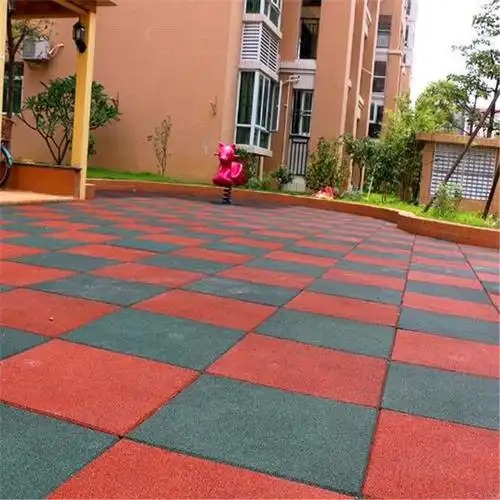

- Versatile machine for producing various types of floor tiles with different diameters; multiple tile types possible with interchangeable molds
- New design concept with strong technical capabilities and advanced manufacturing processes to meet individual customer requirements
Product Parameters
| Model |
XLB-D350X350 |
XLB-D400X400 |
XLB-D550X550 |
XLB-D650X650 |
XLB-D750X850 |
| Nominal pressure (MN) |
0.25 |
0.50 |
0.50 |
1.00 |
1.60 |
| Plate size (mm) |
350×350 |
400×400 |
550×550 |
650×650 |
750×850 |
| Plate clearance (mm) |
125 |
125 |
125 |
125 |
125 |
| Working layer number |
1(2) |
2(4) |
2(4) |
2(4) |
2(4) |
| L |
1200 |
1400 |
1650 |
1410 |
1900 |
| W |
400 |
550 |
600 |
680 |
950 |
| H |
1300 |
1500 |
1600 |
1750 |
2000 |
| Weight (kg) |
800 |
1300 |
1500 |
3500 |
6500(7500) |
Company Overview
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd is located at Kangting Road No. 1, Huangdao New District, Qingdao City. We are a specialized high-tech backbone enterprise in rubber machinery production, having passed ISO9001:2015 quality management system certification, European Union CE certification, and Switzerland SGS certification.
Product Range
Our products primarily serve the following industries:
- Tire manufacturing
- Rubber conveyor belt production
- Various rubber products
- Tire refurbished manufacturing
- Waste tire recycling
Main equipment includes: Rubber Kneader, Rubber Mixing Machine, Rubber Vulcanizing Press, Batch Off Cooler, Rubber Calender, Waste Tire Crusher, Rubber Extruder, Rubber Strainer, and more.
Global Reach
Our products are exported to over 50 countries and regions including Britain, Switzerland, USA, Germany, Brazil, Singapore, Malaysia, India, Russia, Ukraine, Uzbekistan, and Kazakhstan. We have earned praise and long-term cooperation from domestic and international customers.
Quality Commitment
- Every component passes strict quality inspection before storage
- All products undergo overload trial running before shipment
- Comprehensive free technical support for all products
- 3-year warranty for main parts, 1-year warranty for wearing parts
Our Services
- Custom machine design with engineering drawings for customer confirmation
- Production progress photos provided during manufacturing
- Complete documentation including packing list, commercial invoice, and bill of lading
- Free English foundation DWG, installation drawings, user guides, maintenance manuals, and part drawings
Frequently Asked Questions
What does your factory do regarding quality control?
We implement comprehensive quality control throughout the entire production process. Every machine is fully assembled and carefully tested before shipment.
What's the machine quality guarantee?
Quality guarantee period is one year. We use world-famous brand components to ensure optimal machine performance.
Are you able to give installation and commissioning overseas? How long will it take?
Yes, we provide overseas service and technical support (installation costs covered by customer). Small machines typically take 2-3 days, while large production lines require approximately 30 days.
How can I trust you to deliver the right machine as I ordered?
We guarantee delivery of high-quality machines as discussed and confirmed in your order. Our company culture emphasizes innovation, quality, integrity, and efficiency, with established partnerships with world-renowned rubber production manufacturers.
How can we visit your facility?
We are located in Qingdao City, Shandong province, China. The nearest airport is Qingdao Jiaodong Airport. We provide airport pickup services for visiting clients.
