Product instruction
The solid tire vulcanizing machine is special molding and curing equipment for solid tires of forklifts, engineering vehicles and trailers. It completes rubber vulcanization and shaping under high temperature and pressure via hydraulic mold clamping and constant temperature heating, improving tire strength and wear resistance. Equipped with PLC electric control, hydraulic power and constant temperature heating system, it supports electric, steam and thermal oil heating, with customized non-standard options available.
Product pictures
Product advantages
1.Adopts a four-column rigid frame structure with strong bearing capacity. It is not easy to deform under long-term heavy load, ensuring stable operation and long service life.
2.Equipped with a full-automatic PLC control system, it completes the whole process of mold closing, exhaust, pressure holding and opening with one key. Manual and automatic modes are freely switchable for simple and convenient operation.
3. It is equipped with a high-precision constant temperature control system with uniform heating. The consistent vulcanization effect effectively avoids tire defects such as air bubbles and under-vulcanization, ensuring high finished product qualification rate.
4.Fitted with a high-performance hydraulic system, it features excellent pressure stabilization, low noise, energy saving and low failure rate, supporting stable continuous operation.
5.It supports non-standard customization of solid tires of all specifications to meet diverse production needs. With a simple structure and universal accessories, it requires easy daily maintenance and low maintenance cost.
Product datas
| 型号 | 压力 | 热板尺寸 | 工作层数 | 控制方式 | 外形尺寸 |
| XLB-D 500×500×1/1.00MN | 1.00MN | 500x500x厚57mm | 1层 | PLC自动控制 | 1830(左右)x2200(前后)x1850(高) |
| XLB-D700X700X4/2.00MN | 2.00MN | 700x700x56(mm) | 4层 | PLC自动控制 | 1400(左右)*3800(前后)*4460(高) |
| XLB-D 800×800×1/2.00MN | 2.00MN | 800x800x厚56mm | 1层 | PLC自动控制 | 2160(左右)x1850(前后)x2900(高) |
| XLB-850×850×2/3.60MN | 3.60MN | 850×850×60(mm) | 2层 | PLC自动控制 | 1250×850×4000(mm) |
| XLB-900×900×3/4.00MN | 4.00MN | 900×900×80(mm) | 3层 | PLC自动控制 | 2500×900×4500(mm) |
| XLB-1000×1000×2/5.00MN | 5.00MN | 1000×1000×60(mm) | 2层 | PLC自动控制 | 2800×2700×4000(mm) |
| XLB-D1200X1200X2/6.00MN | 6.00MN | 1200x1200x56(mm) | 2层 | PLC自动控制 | 2140(左右)*5200(前后)*4240(高) |
| XLB-1300×1300×3/6.00MN | 6.00MN | 1300×1300×75(mm) | 3层 | PLC自动控制 | 2260×1300×5100mm) |
| XLB-D1500X1500X3/12.00MN | 12.00MN | 1500x1500x76(mm) | 3层 | PLC自动控制 | 2500(左右)*3400(前后)*6000(高) |
| XLB-D1500X1500X2/15.00MN | 15.00MN | 1500x1500x76(mm) | 2层 | PLC自动控制 | 2560(左右)*4800(前后)*6500(高) |
| XLB-D1800X1800X3/12.00MN | 12.00MN | 1800x1800x76(mm) | 3层 | PLC自动控制 | 2800(左右)*6100(前后)*5900(高) |
| XLB-Q2000×2000×1/12.00MN | 12.00MN | 2000×2000×60(mm) | 1层 | PLC自动控制 | 3000×2000×4800mm) |
| XLB-D2500X2500X2/20.00MN | 20.00MN | 2500x2500x95(mm) | 2层 | PLC自动控制 | 3682(左右)*9200(前后)*7190(高) |
| XLB-D2600X2600X1/30.00MN | 30.00MN | 2600x2600x76(mm) | 1层 | PLC自动控制 | 3800(左右)*6000(前后)*6100(高) |
Application

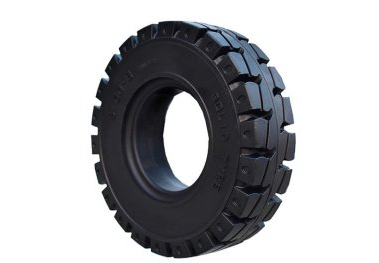

Widely used in the production and processing of solid tires for forklifts, mining engineering vehicles, trailers, sightseeing cars and other equipment.
Product highlights
1. Four-column rigid frame with strong bearing capacity, anti-deformation, stable and durable operation
2. Full-automatic PLC control realizes integrated operations of mold closing, exhaust, pressure holding and opening, with switchable manual and automatic modes
3. Precise and uniform temperature control avoids tire defects such as air
4. The hydraulic system features stable pressure, low noise, energy saving and low failure rate
5. Customizable production for full-specification solid tires with easy maintenance.
Company instruction
Qingdao Shun Cheong Rubber Machinery Manufacturing Co,LTD is located in Qingdao west coast new economic distrect,witch is a high-tech enterprise “specializing and New “ ENterprise,Nation”High-tech”Enterprise,etc. has been achieved,trademark “顺富昌” registered, and has passed ISO9001:2015 quality system certification , Swiss SGS certification and CE export certication . All the machines are designed with 3D software and are not only sold all over the country ,but also exported to the United States ,Britain ,Russia , the Netherlands , Thailang ,Malaysia , Indonesia , Chile , Mexico , Uzbekistan , France and many other countries and regions .
The main products of our company including new banbury mixer , rubber mixing mill ,vulcanizing press , rubber calender , batch of cooler , rubber kneader , forced feeding straining extruder ,new waste tire recycling line , reclaimed rubber equipment etc . , and can design and manufacture various special rubber machinery according to customer requirements.
Certifacation
Our Services
♦ Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
♦ In the process of production, we will take photos and send to customers for their track the progress.
♦ Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
♦ We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
♦ We supply overseas engineer service and help to train your workers to operate the machine.
