Product instruction
Plate Vulcanizing Press is used for hot vulcanization of various rubber products. Hydraulic driving with evenly heated platens and precise temperature control. Optional intelligent control and multi-exhaust structure. Stable pressure, low failure rate, easy operation and maintenance, compatible with different rubber materials.

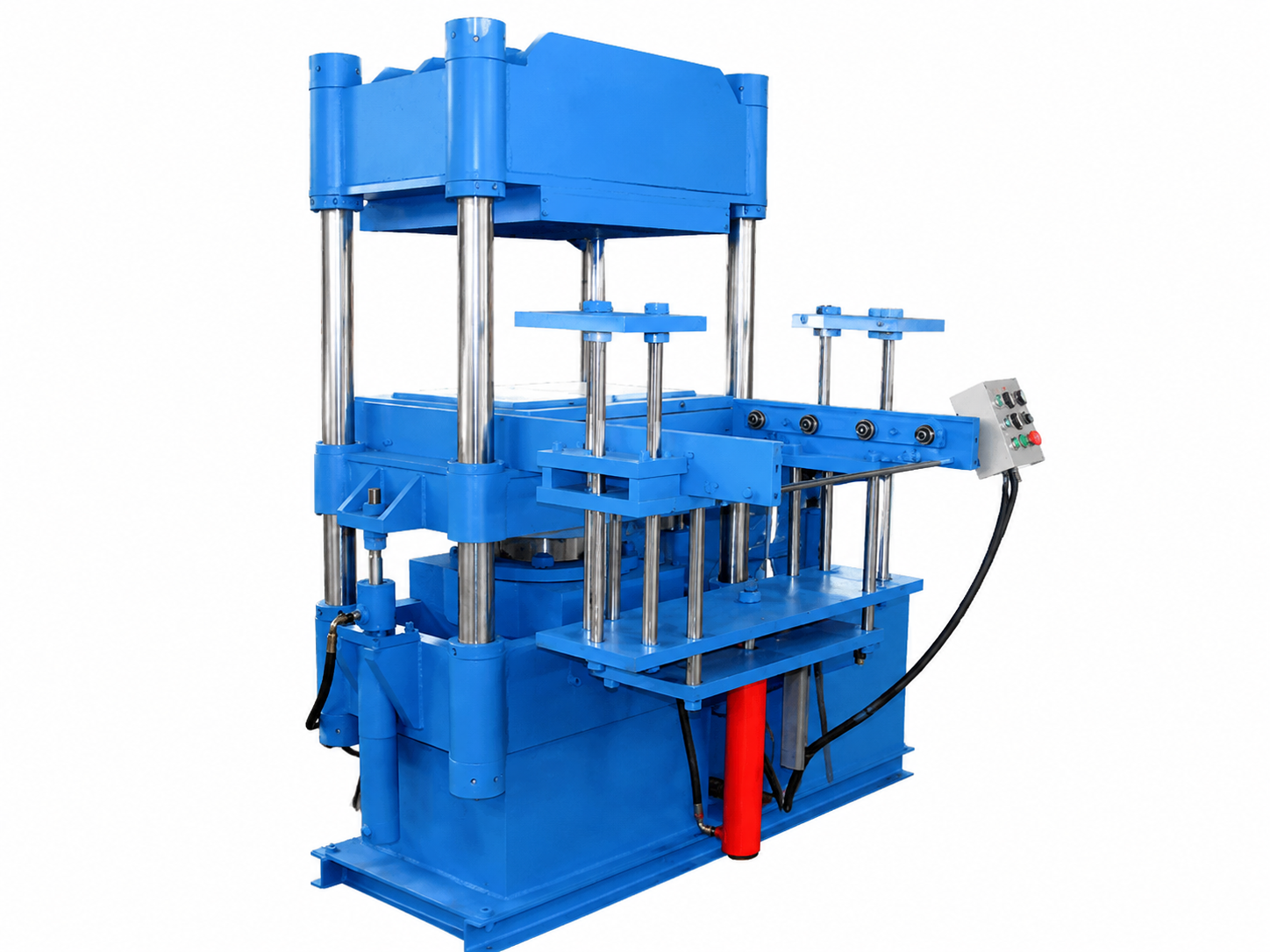

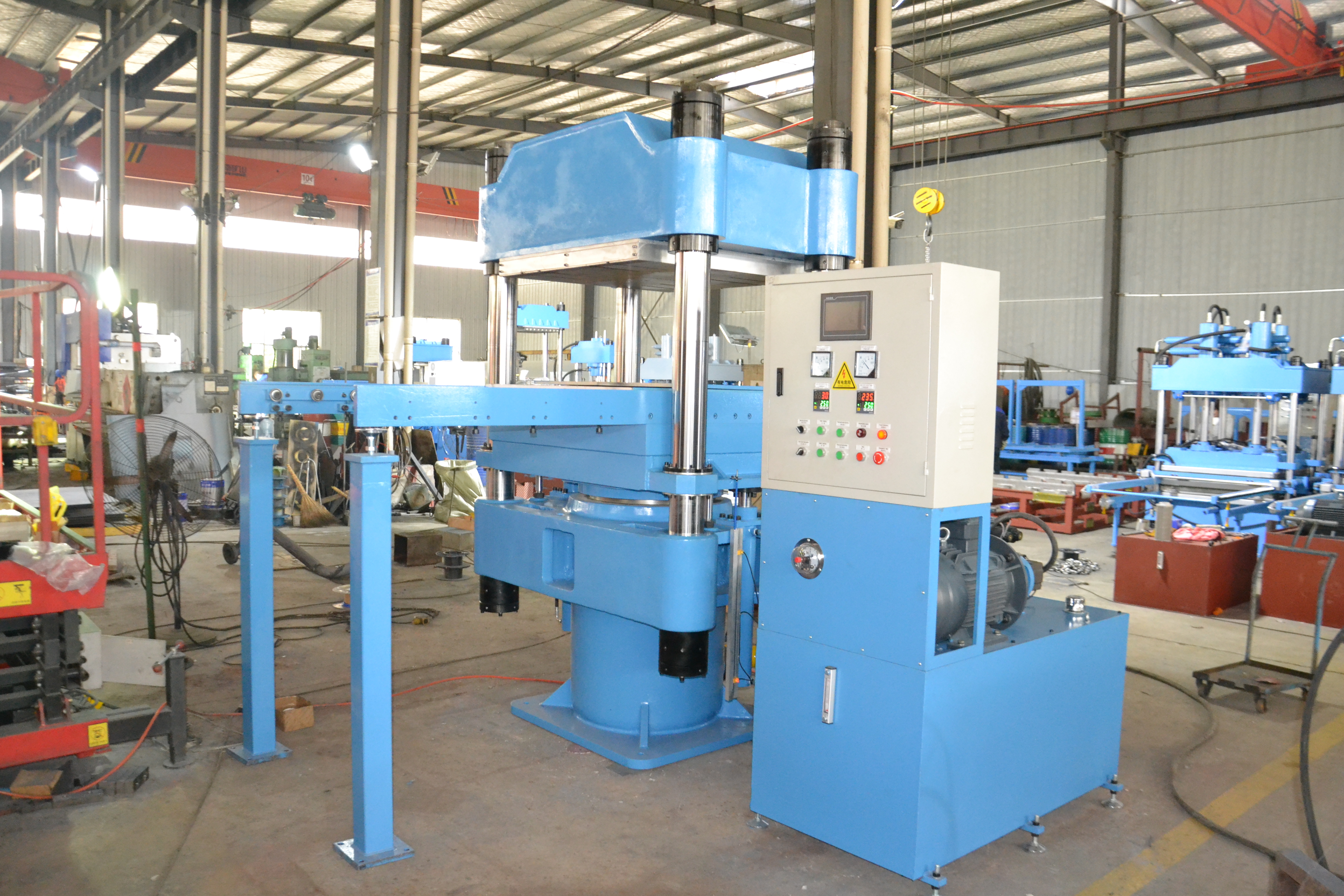

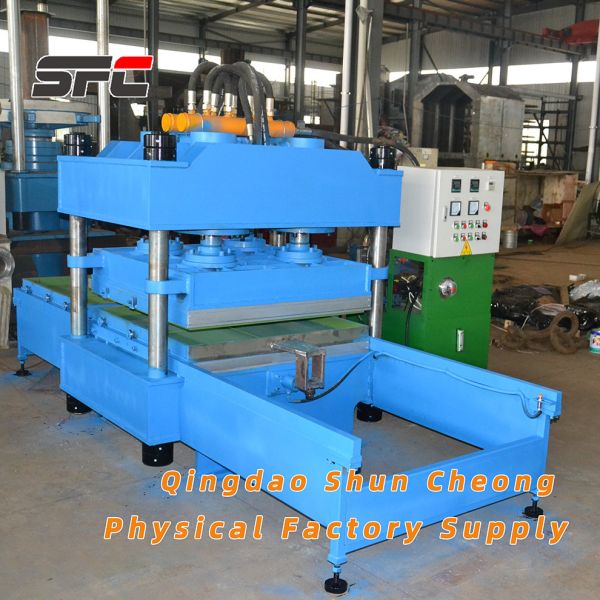

Product Picture
Technical data
|
Model
|
Total Pressure
(MN)
|
Daylight
(mm)
|
Working Layer
|
Piston Stroke
(mm)
|
Overall Dimension
(L×W×H)(mm)
|
|
XLB-350*350*2
|
0.25
|
125
|
2
|
250
|
1200*580*1200
|
|
XLB-400*400*2
|
0.50
|
125
|
2
|
250
|
1400*500*1400
|
|
XLB-600*600*2
|
1.00
|
125
|
2
|
250
|
1880*820*1680
|
|
XLB-750*850*4
|
1.60
|
125
|
4
|
500
|
1730*930*2460
|
|
XLB-900*900*2
|
2.50
|
200
|
2
|
400
|
2345*960*1385
|
|
XLB-1200*1200*1
|
3.15
|
300
|
1
|
300
|
2800*1300*2300
|
|
XLB-1300*2000*1
|
5.60
|
400
|
1
|
400
|
2000*1860*2500
|
|
XLB-1500*1500*1
|
8.00
|
800
|
1
|
800
|
2200*2200*4300
|
|
XLB-1500*2500*1
|
15.00
|
400
|
1
|
400
|
3000*2500*3300
|
|
XLB-2000*2000*1
|
20.00
|
400
|
1
|
400
|
3600*3000*3300
|
Product Hightlights
It provides sufficient and uniform pressure. The finished products are compact and smooth with no bubbles or deformation, ensuring high qualification rate.
AWith automatic pressure compensation and holding system, the pressure stays constant during curing, ensuring consistent product size and stability.
Intelligent PLC control system supports adjustable temperature, time, pressure and exhaust times. Auto/manual dual modes make operation simple and efficient.
Company instruction
Qingdao Shun Cheong Rubber Machinery Manufacturing Co,LTD is located in Qingdao west coast new economic distrect,witch is a high-tech enterprise “specializing and New “ ENterprise,Nation”High-tech”Enterprise,etc. has been achieved,trademark “顺富昌” registered, and has passed ISO9001:2015 quality system certification , Swiss SGS certification and CE export certication . All the machines are designed with 3D software and are not only sold all over the country ,but also exported to the United States ,Britain ,Russia , the Netherlands , Thailang ,Malaysia , Indonesia , Chile , Mexico , Uzbekistan , France and many other countries and regions .
Cetification
Product Tags:
|
|
400Ton 1000x1000x1，Hydraulic Push-Pull Vulcanizing Press Images
|
