Plate Vulcanizing Press for Rubber Insulation Accessories
Product Overview
Model XLB-500X500X1 horizontal vulcanizing press designed for manufacturing rubber insulation accessories and sealing components with advanced automation and precision engineering.
Key Specifications
Model: XLB-500X500X1
Certifications: CE, ISO9001:2015, SGS
Total Pressure: 0.63 MN
Motor Power: 2.2 kW
Plate Unit Area Pressure: 2.52 MPa
Dimensions: 1750*600*1540 mm
Working Layers: 1
Heating Options: Electric, Oil, Steam
Applications
This rubber vulcanizing press is specifically designed for manufacturing special seal rings in petroleum machinery and can be used for various vulcanizing molds, rubber, and plastic components across multiple industries.
Key Features
- Frame structure with upward pressing form for efficient operation
- Nodular cast iron oil cylinder for enhanced compressive strength and wear resistance
- Oil-proof rubber seal rings for reliable sealing performance
- Combined oil pump system with precise control valve operation
- Tubular electric heating components for clean, boiler-free operation
- PLC control system for automated operation
- Customizable design to meet specific production requirements

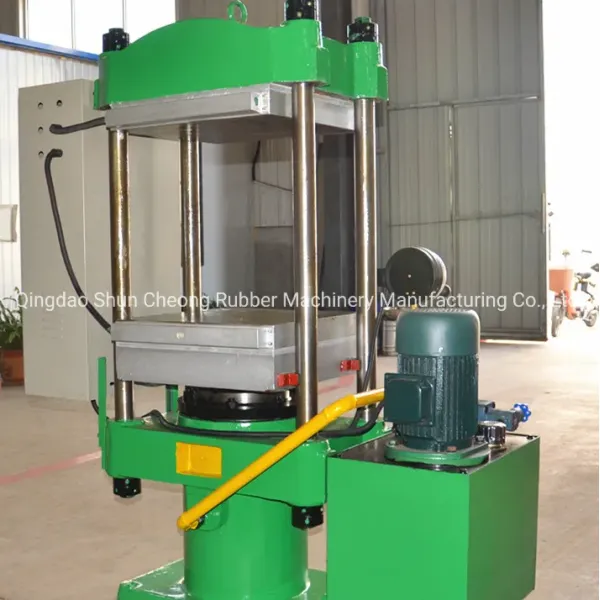

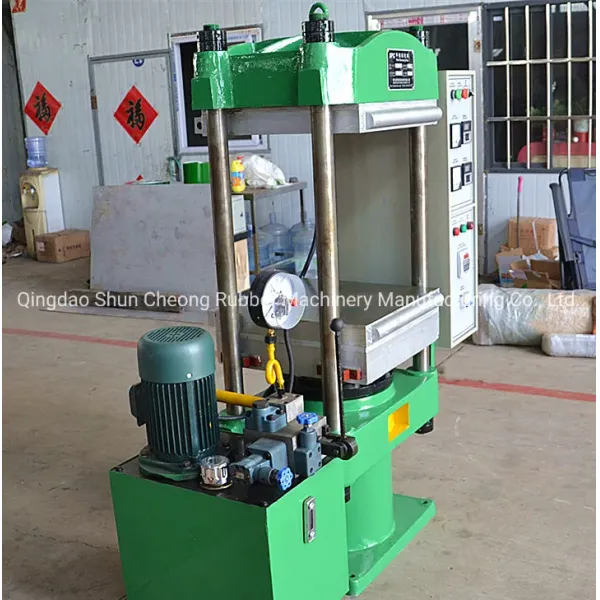

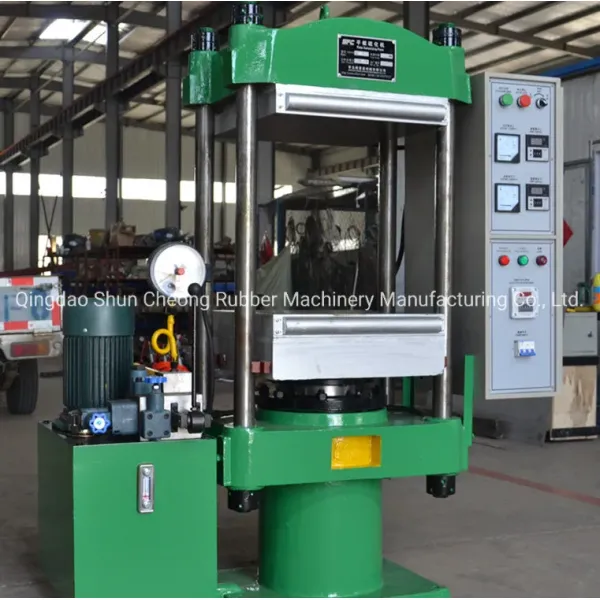

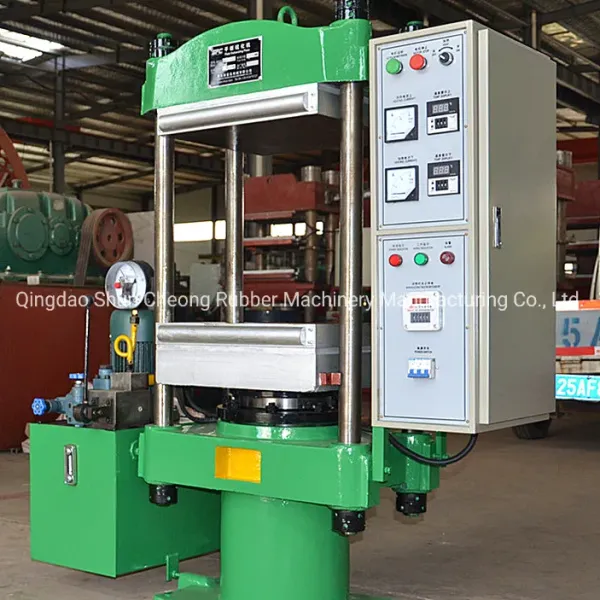

Product Images
Technical Parameters
| Parameter Type |
XLB-240*240*1/4 |
XLB-350*350*1/4 |
XLB-400*400*1/4 |
XLB-500*500*1/4 |
XLB-600*600*1/4 |
XLB-700*700*1/4 |
XLB-750*850*1/4 |
XLB-900*900*2Q |
| Total Pressure (MN) |
0.15 |
0.25 |
0.5 |
0.63 |
1.00 |
1.20 |
1.60 |
2.00 |
| Plate Distance (mm) |
125 |
125 |
125 |
125 |
125 |
125 |
200 |
300 |
| Working Layer No. |
1-4 |
1-4 |
1-4 |
1-4 |
1-4 |
1-4 |
1-4 |
2 |
| Unit Area Pressure (MPa) |
2.60 |
2.04 |
3.13 |
2.52 |
2.77 |
2.45 |
2.51 |
2.47 |
| Plunger Stroke (mm) |
250 |
250 |
250 |
250 |
250/400 |
250 |
400 |
400 |
| Heating Mode |
Electricity |
Electricity |
Electricity/Stream |
Electricity/Stream |
Electricity/Stream |
Stream |
Electricity/Stream |
Stream |
| Motor Power (KW) |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
3 |
5.5 |
| Size (L*W*H)(mm) |
1200*350*1300 |
1400*480*1380 |
1600*500*1480 |
1750*600*1540 |
1880*720*1680 |
2000*850*1750 |
2250*1200*2200 |
1400*900*2400 |
Quality Assurance
Qingdao Shun Cheong Rubber Machinery maintains rigorous quality control standards with ISO9001:2015, CE, and SGS certifications. All components undergo strict inspection, and machines are tested under overload conditions before shipment.
Service & Support
- Custom machine design and engineering support
- Production progress tracking with photo updates
- Comprehensive documentation and technical drawings
- 3-year warranty on main components
- Overseas installation and technical support
- Worker training and operational guidance
