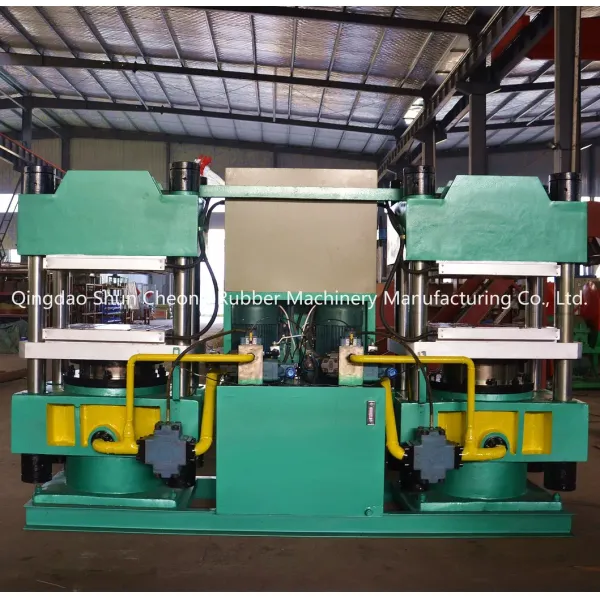

Duplex Vulcanizing Press
Product Specifications
Model NO. XLB-500x500
Certification CE, ISO
Condition New
Automatic Grade Automatic
Structure Horizontal
Total Pressure 0.63 MN
Main Motor Power 2.2 KW
Working Layer No. 1
Plunger Stroke 250 mm
Heating Manner Electricity, Oil, Steam
Production Capacity 50 Sets/Year
Product Overview
This plate vulcanizing press is designed for vulcanizing various rubber and plastic molds, including specialized applications in the petroleum industry for producing sealing components.
Structural Features
- Composed of hot plates, platforms, piston stroke mechanism, hydro-cylinder, hydraulic station, and electrical control system
- Optional push-pull mold device for convenient mold movement
- Plates constructed from welded Q235 steel with mechanical ball blast rust removal and zinc-rich coating
- Hot plates made from 35# steel with double scale rolling and automatic steam temperature control
- Platforms fabricated using automated cutting and carbon dioxide gas shielded welding techniques
- Hydro-cylinder utilizes ZG270-500 material with dual sealing ring and dustproof ring design
- PLC automatic control system for automated operation with manual control option
Technical Specifications
| Parameter Type | XLB-400*400 | XLB-500*500 | XLB-600*600 | XLB-700*700 | XLB-750*850 |
| Total Pressure (MN) | 0.5 | 0.63 | 1.00 | 1.20 | 1.60 |
| Plate Distance (mm) | 125 | 125 | 125 | 125 | 200 |
| Working Layer NO. | 1 | 1 | 1 | 1 | 1 |
| Unit Area Pressure of Hot Plate (Mpa) | 3.13 | 2.52 | 2.77 | 2.45 | 2.51 |
| Plunger Stroke (mm) | 250 | 250 | 250/400 | 250 | 400 |
| Heating Mode | Electricity/Stream | Electricity/Stream | Electricity/Stream | Stream | Electricity/Stream |
| Motor Power (KW) | 2.2 | 2.2 | 2.2 | 2.2 | 3 |
| Size (L*W*H mm) | 1600*500*1480 | 1750*600*1540 | 1880*720*1680 | 2000*850*1750 | 2250*1200*2200 |
Manufacturer Profile
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd is a high-tech enterprise specializing in rubber machinery production, holding ISO9001:2015, CE, and SGS certifications. The company serves multiple industries including tire manufacturing, conveyor belt production, rubber products, tire refurbishing, and waste tire recycling.
Quality Assurance
- All components undergo strict quality inspection before storage
- Comprehensive overload testing: 24-hour pressure testing at 1.25x rated capacity
- Free technical support for all products
- 3-year warranty on main components, 1-year on wearing parts
- Rapid response service with on-site technical support when needed
Certifications
Customer Services
- Custom machine design with engineering drawings
- Production progress updates with photos
- Complete documentation including packing lists and invoices
- Free technical drawings, user guides, and maintenance manuals
- Overseas engineer support and operator training
Frequently Asked Questions
What does your factory do regarding quality control?
We implement comprehensive quality control throughout production. Every machine undergoes full assembly and rigorous testing before shipment.
What's the machine quality guarantee?
One-year quality guarantee. We use world-renowned components to ensure optimal machine performance.
Are you able to give installation and commissioning overseas?
Yes, we provide overseas service and technical support. Small machines typically require 2-3 days installation, while production lines take approximately 30 days.
How can I trust you to deliver the right machine?
We maintain a company culture focused on innovation, quality, integrity and efficiency, with established partnerships with renowned rubber manufacturers worldwide.
How can we visit your facility?
We are located in Qingdao City, Shandong province, China. We provide airport pickup service from Qingdao Jiaodong Airport.
