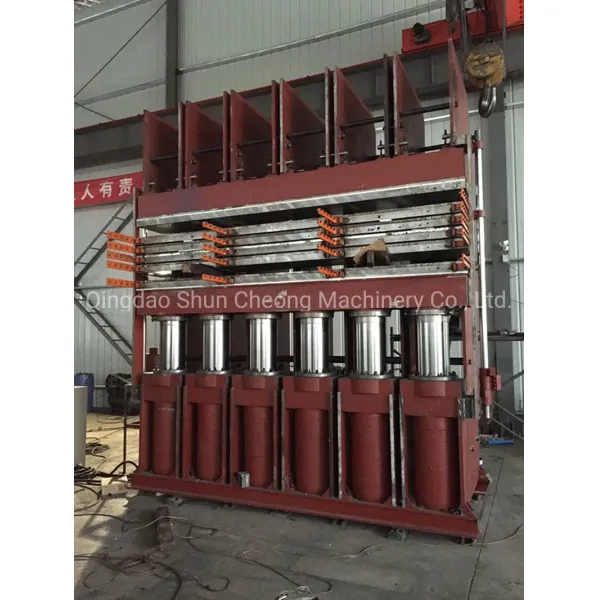

High Capacity Tire Tread Vulcanizing Press Rubber Vulcanizing Machine
Our Tire Tread Vulcanizing Press delivers exceptional performance for tire manufacturing applications with advanced automation and robust construction.
Key Specifications
- Low energy consumption design
- Convenient maintenance access
- High capacity with simple operation
- Fully automatic system control
Technical Parameters
We can design various press configurations according to your specific requirements.
| Model | XLB-3000x1000x5 | XLB-5500x360x5 | XLB-5500x360x5 | XLB-1100x420x5 |
| Total Pressure (MN) | 12 | 10 | 8 | 20 |
| Daylight (mm) | 140 | 75 | 75 | 75 |
| Working Layer No. | 5 | 5 | 5 | 5 |
| Piston Stroke (mm) | 500 | 375 | 375 | 375 |
| Piston Diameter (mm) | φ360 | φ250 | φ250 | φ250 |
| Hydraulic Cylinder No. | 8 | 10 | 8 | 20 |
| Working Hydraulic Pressure (Mpa) | 14.7 | 20.4 | 20.4 | 20.4 |
| Motor Power (KW) | 29.5 | 21.5 | 7.5 | 40 |
| Dimension (mm) | 3720*3460*4120 | 7600*2700*3100 | 7600*2700*3100 | 15500*3400*4200 |
| Structure Type | Jaw | Side-plate | Side-plate | Side-plate |
Main Features
- All plates, frame plates, upper and lower beams utilize Q235 steel plates, welded and annealed to eliminate stress and prevent deformation during operation
- Pistons manufactured from dense-texture chilled cast iron with precision grinding
- Synchronization gear mechanism ensures balanced plate rising
- Optimal unit area pressure of approximately 40kg/cm² for superior tire tread density
- Side-plate structure recommended for large bearing capacity, minimal deformation, and easy installation/transportation
- Automatic hydraulic push-pull mold device with cast steel hydraulic cylinders for high working efficiency
- PLC automatic control with touch screen interface featuring automatic and manual control modes
- Plate heating options: steam or oil heating modes available
- Premium hydraulic components and electrical systems using imported or domestic brand components for stable performance
Frequently Asked Questions
What does your factory do regarding quality control?
We implement comprehensive quality control throughout production. Every machine undergoes full assembly and rigorous testing before shipment.
What's the machine quality guarantee?
One-year quality guarantee. We utilize world-renowned brand components to ensure optimal machine performance and reliability.
Are you able to give installation and commissioning overseas? How long will it take?
Yes, we provide overseas service and technical support (customer covers installation costs). Small machines: 2-3 days. Large production lines: approximately 30 days.
How can I trust you to deliver the right machine as I ordered?
We guarantee delivery of high-quality machines as confirmed in your order. Our company culture emphasizes innovation, quality, integrity, and efficiency, with proven collaborations with world-renowned rubber manufacturers.
How can we visit your facility?
We are located in Qingdao City, Shandong province, China (Qingdao Liuting Airport). We provide airport pickup services for visiting clients.
Our Services
- Custom machine design with engineering drawings for customer confirmation
- Production progress tracking with regular photo updates
- Complete documentation including packing list, commercial invoice, and bill of lading
- Free technical support: foundation DWG, installation drawings, user guides, maintenance manuals, and part drawings
- Overseas engineer services and operator training programs
