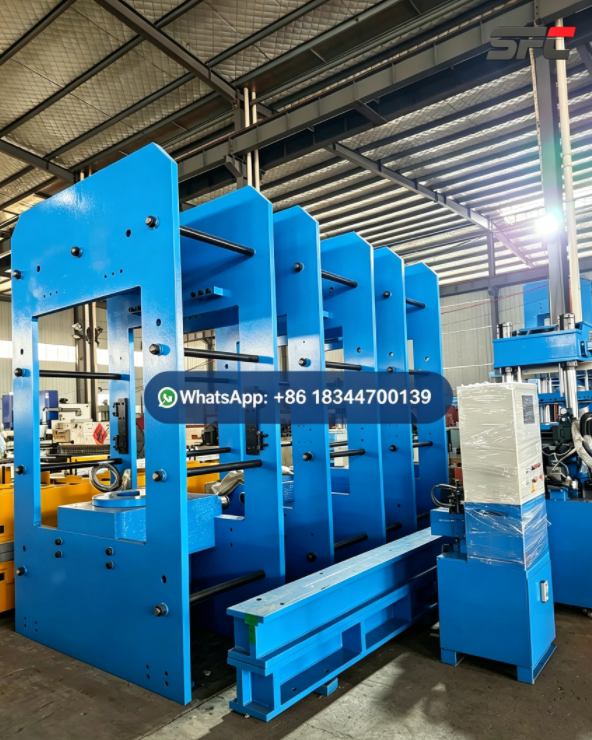

Frame Rubber Vulcanizing Machine with Push-Pull Device
Automatic vertical frame rubber vulcanizing machine with push-pull functionality, CE and ISO9001:2008 certified.
Basic Specifications
Customization: Customized
Automatic Grade: Automatic
Structure: Vertical
Certificate: CE & ISO9001:2008
Structure Type: Frame/Column/Jaw/Heavy Side-Plate (Customized)
Heating Method: Electric/Thermal Oil/Steam (Customized)
Control Method: Automatic Press with PLC
Warranty: 12 Months After Installation
Transport Package: Container
Specification: National Standard
Trademark: SFC
Origin: Qingdao, China
Product Overview
CE certified frame rubber vulcanizing machine with push-pull functionality. Our company holds CE, ISO9001, and SGS certificates, ensuring 100% compliance with requirements. With over 20 years of experience in the rubber machine industry, we provide one-year quality guarantee and long-term technical support. Our machines are exported to approximately 126 countries across 6 continents. Payment options include L/C or T/T, with delivery within 30 days after receiving deposit.
Key Features
- ISO 9001 certified hydraulic presses ensuring quality assurance
- Machines ranging from 50 to 2500 Tons for shaping rubber compounds into finished products
- Perfectly matched controls and hydraulic system for complete customer satisfaction
- Computer-aided frame design using tested-quality steel profiles for maximum rigidity and longer life
- Low noise hydraulic unit with manifold-mounted valves for easy maintenance
- Energy-efficient operation with motor stopping during curing period
- Programmable speeds and curing parameters for optimized production
Technical Parameters
| Type |
Total Pressure (MN) |
Plate Size (mm) |
Daylight (mm) |
Layer No. |
Piston Stroke (mm) |
Plate Unit Area Pressure |
Main Motor Power (kw) |
Overall Dimension (L*W*H mm) |
Weight (kg) |
| XLB-DQ1200*1200*2 |
315t |
1200*1200 |
200 |
2 |
400 |
22 |
3 |
1685*1320*2450 |
9500 |
| XLB-DQ1300*2000*1 |
560t |
1300*2000 |
400 |
1 |
400 |
21.5 |
8 |
2000*1860*2500 |
17000 |
| XLB-Q1200*2500*1 |
750t |
1200*2500 |
400 |
1 |
400 |
25 |
9.5 |
2560*1700*2780 |
20000 |
| XLB-Q1500*2000*1 |
1000t |
1500*2500 |
400 |
1 |
400 |
33.5 |
11 |
2810*1550*3325 |
24000 |
| XLB-Q2000*3000*1 |
1800t |
2000*3000 |
400 |
1 |
400 |
30 |
26 |
2900*3200*2860 |
66000 |
| XLB-Q1400*5700*1 |
2800t |
1400*5700 |
400 |
1 |
400 |
35 |
43.5 |
2400*5800*3600 |
110000 |
Packaging & Protection
Equipment is painted before delivery and wrapped with stretch film to protect the surface finish. Custom wooden packaging is available. Key components such as electronic control boxes are protected with shockproof packaging materials and packed in wooden cases for secure transportation.
Frequently Asked Questions
- What does your factory do regarding quality control?
We implement comprehensive quality control throughout production. Every machine is fully assembled and carefully tested before shipment.
- What's the machine quality guarantee?
One-year quality guarantee. We use world-famous brand components to ensure optimal machine performance.
- Are you able to give installation and commissioning overseas? How long will it take?
Yes, we provide overseas service and technical support (customer covers installation costs). Small machines: 2-3 days. Large production lines: approximately 30 days.
- How can I trust you to deliver the right machine as I ordered?
We guarantee delivery of quality machines as confirmed in orders. Our company culture emphasizes innovation, quality, integrity, and efficiency. We have established partnerships with world-renowned rubber manufacturers.
- How can we visit your facility?
We are located in Qingdao City, Shandong province, China (Qingdao Liuting Airport). We provide airport pickup services.
Our Services
- Custom machine design with engineering drawings for customer confirmation
- Production progress photos sent to customers for tracking
- Complete documentation including packing list, commercial invoice, and bill of lading
- Free technical documentation: foundation DWG, installation drawings, user guides, maintenance manuals, and part drawings
- Overseas engineer services and operator training
