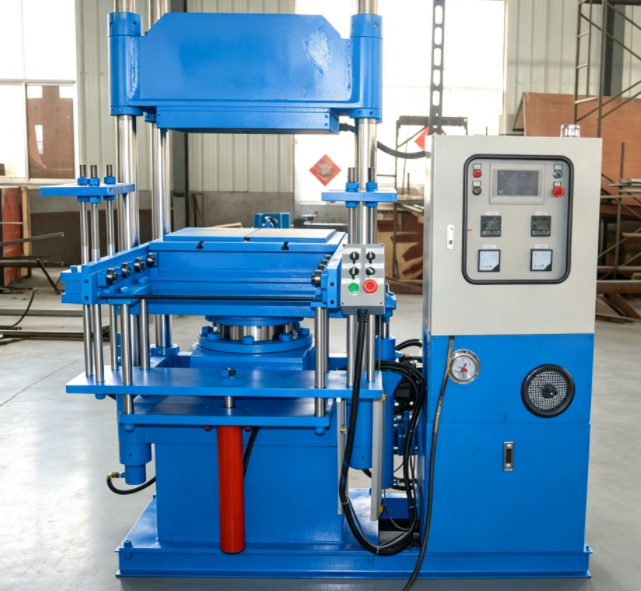

Car Gasket and Wiper Making Machine / Rubber Compression Molding Machine
Basic Specifications
Model: XLB (Customized)
Automatic Grade: Automatic
Structure: Vertical
Type: Rubber Product Making Machine
Plate Size: 600*600
Total Press: 100 Ton
Plate Distance: 125 mm
Transport Package: Plywood Case Packing
Trademark: SFC
Origin: Qingdao, China
Company Information
- 20 years of experience in vulcanizing press manufacturing and exporting
- Delivery within 35 days
- Safety wood or plywood crates packing
- Full transportation insurance
- Global distribution to 126 countries across 6 continents
- One-stop rubber machinery solutions from Qingdao Shun Cheong
- CE1282 vulcanizing press quality certificate

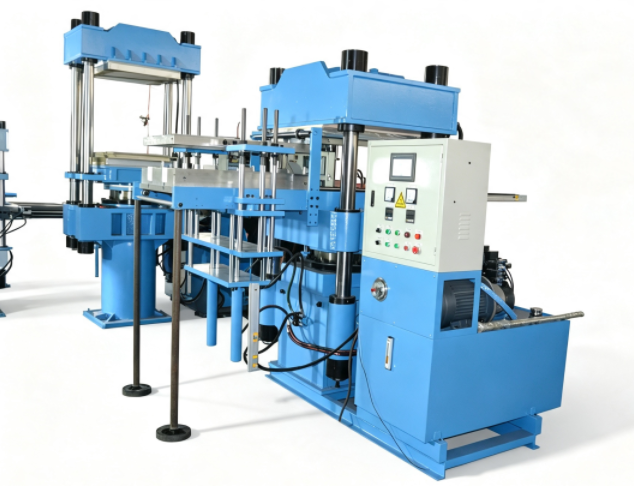

This press features push-pull mould frame, automatic mould opening, easy operation, and improved efficiency with reduced worker time.
Technical Details
- Composed of press plate, upper and lower platforms, piston stroke, hydro-cylinder, hydraulic station, and pillar column
- Hot plates made from 35# steel plates with normalizing treatment and double scale rolling
- Upper and lower platforms use Q235 steel plates with precision manufacturing processes
- Cylinder material: QT500-7 with HT200 piston (ZG270-500 and chilled alloy cast iron options available)
- Sealing structure uses combined double sealing ring with dustproof ring for extended service life
- Assembled oil pump provides power source with manual control options
- Electrical control system supports automatic and semi-automatic operation modes
Technical Parameters
We design and manufacture all types of non-standard plate vulcanizing presses according to customer requirements.
| Parameter/Type |
XLB240*240*2 |
XLB350*350*2 |
XLB400*400*2 |
XLB500*500*2 |
XLB600*600*2/4 |
XLB700*700*2 |
XLB750*850*2/4 |
XLB900*900*2Q |
| Total Pressure (MN) |
0.15 |
0.25 |
0.5 |
0.63 |
1.00 |
1.20 |
1.60 |
2.00 |
| Plate Distance (mm) |
125 |
125 |
125 |
125 |
125 |
125 |
200 |
300 |
| Working Layer NO. |
2 |
2 |
2 |
2 |
2-4 |
2 |
2-4 |
2 |
| Unit Pressure (Mpa) |
2.60 |
2.04 |
3.13 |
2.52 |
2.77 |
2.45 |
2.51 |
2.47 |
| Plunger Stroke (mm) |
250 |
250 |
250 |
250 |
250/400 |
250 |
400 |
400 |
| Heating Mode |
Electricity |
Electricity |
Electricity/Stream |
Electricity/Stream |
Electricity/Stream |
Stream |
Electricity/Stream |
Stream |
| Motor Power (kw) |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
3 |
5.5 |
| Size: (L*W*H)(mm) |
1200*350*1300 |
1400*480*1380 |
1600*500*1480 |
1750*600*1540 |
1880*720*1680 |
2000*850*1750 |
2250*1200*2200 |
1400*900*2400 |
Packaging & Quality Assurance
Equipment is painted before delivery, wrapped with stretch film to protect surface finish, and packed in customized wooden cases. Key components like electronic control boxes receive shockproof packaging. Each machine undergoes 24-hour pressure testing to ensure no oil leakage or seepage.
Frequently Asked Questions
What does your factory do regarding quality control?
We implement comprehensive quality control throughout production. Every machine is fully assembled and thoroughly tested before shipment.
What's the machine quality guarantee?
One-year quality guarantee. We use world-renowned brand components to ensure optimal machine performance.
Are you able to give installation and commissioning overseas? How long will it take?
Yes, we provide overseas service and technical support (customer covers installation costs). Small machines: 2-3 days. Large production lines: approximately 30 days.
How can I trust you to deliver the right machine as I ordered?
We deliver exactly as discussed and confirmed in orders. Our company culture emphasizes innovation, quality, integrity, and efficiency. We have established partnerships with world-renowned rubber production manufacturers.
How can we visit your facility?
We are located in Qingdao City, Shandong province, China (Qingdao Jiaodong Airport). We provide airport pickup services.
Our Services
- Custom machine design with engineering drawings for customer confirmation
- Production progress photos sent to customers for tracking
- Complete documentation including packing list, commercial invoice, and bill of lading
- Free technical documentation: foundation DWG, installation drawings, user guides, maintenance manuals, and part drawings
- Overseas engineer services and worker training for machine operation
