Duplex Vulcanizing Press
Hydraulic Vulcanizing Press for rubber and plastic processing with automatic PLC control system.
Product Specifications
Model: XLB-400X400
Certifications: CE, ISO
Condition: New
Structure: Vertical Column
Total Pressure: 0.5 MN
Working Layers: 1
Motor Power: 2.2 KW
Production Capacity: 50 Sets/Month
Origin: Qingdao, China
Applications
This plate vulcanizing press is designed for various vulcanizing molds, rubber, and plastic applications. It is particularly suitable for the petroleum industry in producing high-quality sealing parts.
Structural Features
- Composed of hot plates, platforms, piston stroke, hydro-cylinder, hydraulic station, and electrical control system
- Optional push-pull mold device for easy mold movement
- Plates constructed from welded Q235 steel plates with mechanical ball blast rust removal and zinc-rich coating
- Hot plates made from 35# steel with double scale rolling and automatic steam temperature control
- Platforms using Q235 steel plates with precision welding and stress relief heat treatment
- Hydro-cylinder from ZG270-500 with piston stroke using hard cold chilled alloy cast iron
- Double sealing ring with dustproof ring for extended service life
- PLC automatic control system for mold operations with manual control option
Technical Parameters
| Parameter Type |
XLB-400*400 |
XLB-500*500 |
XLB-600*600 |
XLB-700*700 |
XLB-750*850 |
| Total Pressure (MN) |
0.5 |
0.63 |
1.00 |
1.20 |
1.60 |
| Plate Distance (mm) |
125 |
125 |
125 |
125 |
200 |
| Working Layer No. |
1 |
1 |
1 |
1 |
1 |
| Unit Area Pressure (Mpa) |
3.13 |
2.52 |
2.77 |
2.45 |
2.51 |
| Plunger Stroke (mm) |
250 |
250 |
250/400 |
250 |
400 |
| Heating Mode |
Electricity/Stream |
Electricity/Stream |
Electricity/Stream |
Stream |
Electricity/Stream |
| Motor Power (KW) |
2.2 |
2.2 |
2.2 |
2.2 |
3 |
| Size L*W*H (mm) |
1600*500*1480 |
1750*600*1540 |
1880*720*1680 |
2000*850*1750 |
2250*1200*2200 |
Manufacturer Profile

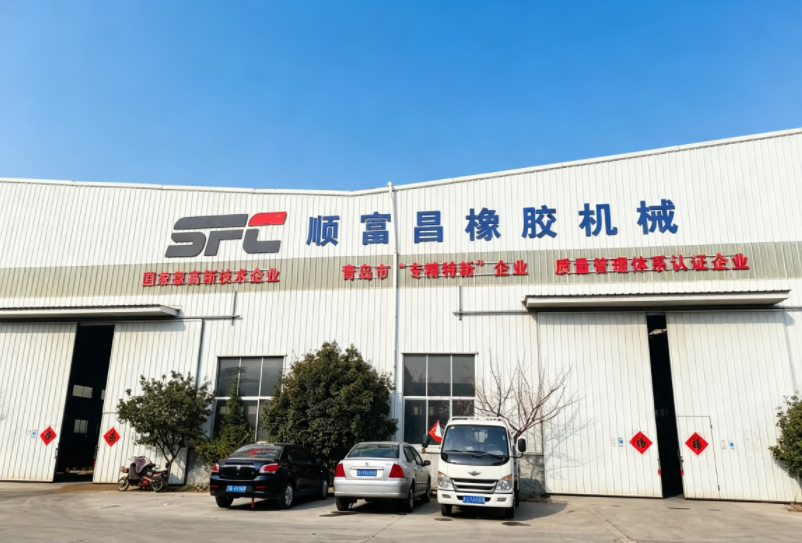

Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd specializes in high-technology rubber machinery production. The company holds ISO9001:2015 quality management system certification, European Union CE certification, and Switzerland SGS certification.
Product Range: Tire manufacturing, rubber conveyor belt production, various rubber products, tire refurbishing, waste tire recycling
Main Equipment: Rubber Kneader, Rubber Mixing Machine, Rubber Vulcanizing Press, Batch Off Cooler, Rubber Calender, Waste Tire Crusher, Rubber Extruder, Rubber Strainer
Global Export: Over 50 countries including USA, Germany, Brazil, UK, Switzerland, Russia, and Southeast Asia.
Quality Assurance
- All components undergo strict quality inspection before storage
- Comprehensive overload testing: 24-hour pressure testing at 1.25x rated working pressure
- Free technical support for all products
- 3-year warranty on main parts, 1-year warranty on wearing parts
- Rapid response service with on-site technical support when needed
Certifications
Customer Support
- Custom machine design with engineering drawings
- Production progress photos and updates
- Complete documentation including packing lists and commercial invoices
- Free technical drawings, installation guides, and maintenance manuals
- Overseas engineer services and operator training
Frequently Asked Questions
What does your factory do regarding quality control?
We implement comprehensive quality control throughout production. Every machine undergoes full assembly and rigorous testing before shipment.
What's the machine quality guarantee?
One-year quality guarantee using world-renowned brand components to ensure optimal performance and reliability.
Are you able to provide overseas installation and commissioning?
Yes, we offer overseas technical support. Small machines typically require 2-3 days installation, while production lines take approximately 30 days.
How can I trust you to deliver the right machine?
Our company culture emphasizes innovation, quality, integrity, and efficiency. We have established partnerships with world-renowned rubber manufacturers and welcome factory visits.
