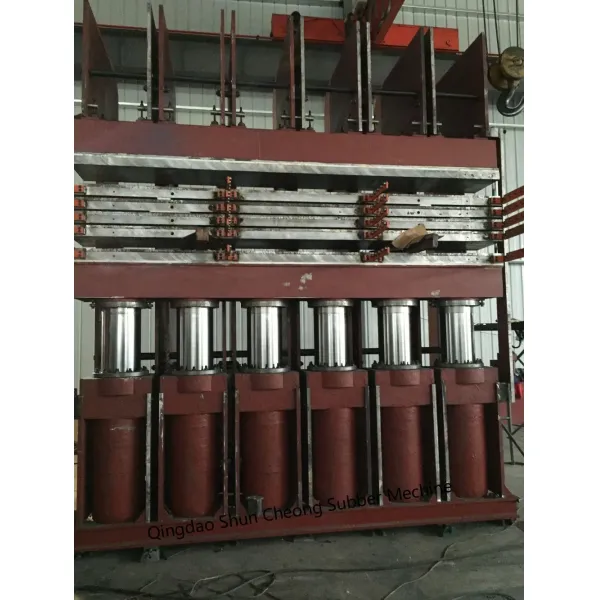

Tire Tread Vulcanizing Retreading Press with Electric Heating
Basic Information
Model: XLB
Total Pressure: 12 MN
Daylight: 140 mm
Working Layers: 5
Piston Stroke: 500 mm
Transport Package: Standard Export Packages
Certifications: CE1282, ISO9001:2008, SGS
Trademark: SFC
Origin: China
HS Code: 8477800000
Key Features
Low energy consumption design
Convenient maintenance access
High capacity with simple operation
Fully automatic control system
Technical Specifications
We can design various presses according to your specific requirements.
| Model |
XLB-3000x1000x5 |
XLB-5500x360x5 |
XLB-5500x360x5 |
XLB-1100x420x5 |
| Total Pressure (MN) |
12 |
10 |
8 |
20 |
| Daylight (mm) |
140 |
75 |
75 |
75 |
| Working Layer No. |
5 |
5 |
5 |
5 |
| Piston Stroke (mm) |
500 |
375 |
375 |
375 |
| Piston Diameter (mm) |
φ360 |
φ250 |
φ250 |
φ250 |
| Hydraulic Cylinder No. |
8 |
10 |
8 |
20 |
| Working Hydraulic Pressure (Mpa) |
14.7 |
20.4 |
20.4 |
20.4 |
| Motor Power (KW) |
29.5 |
21.5 |
7.5 |
40 |
| Dimension (mm) |
3720*3460*4120 |
7600*2700*3100 |
7600*2700*3100 |
15500*3400*4200 |
| Structure Type |
Jaw |
Side-plate |
Side-plate |
Side-plate |
Advanced Features
- Dual-action cylinders for fast mold open/close operation
- Mass flow pre-fill valve for optimal performance
- Automatic mold forward/backward positioning
- Manual/automatic switching control with power failure safety
- Multiple layer number and table configuration options
- Premium imported hydraulic and electrical components
- Automatic pressure compensation and exhaust systems
- Complete automated working cycle from mold pull-in to product pushing
- Custom non-standard designs available upon request
Frequently Asked Questions
What does your factory do regarding quality control?
We implement comprehensive quality control throughout production. Every machine undergoes full assembly and rigorous testing before shipment.
What's the machine quality guarantee?
One-year quality guarantee. We use world-famous brand components to ensure reliable performance and longevity.
Are you able to provide overseas installation and commissioning?
Yes, we offer overseas service and technical support. Small machines typically require 2-3 days installation, while production lines take approximately 30 days.
How can I trust you to deliver the right machine?
We guarantee delivery of high-quality machines as confirmed in your order. Our company culture emphasizes innovation, quality, integrity, and efficiency, with proven partnerships with world-renowned rubber manufacturers.
How can we visit your facility?
We are located in Qingdao City, Shandong province, China, near Qingdao Jiaodong Airport. We provide airport pickup services for visiting clients.
Our Services
- Custom machine design with engineering drawings for customer confirmation
- Production progress tracking with regular photo updates
- Complete documentation including packing lists, commercial invoices, and bills of lading
- Free technical documentation: foundation DWG, installation drawings, user guides, maintenance manuals, and part drawings
- Overseas engineer services and operator training programs
