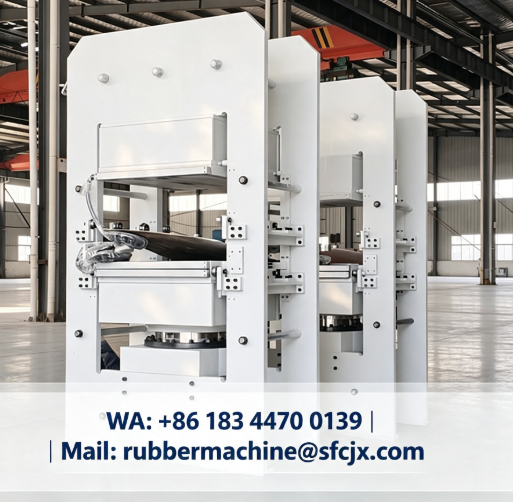

Frame Column Type Heat Press Machine Rubber Mat Molding Vulcanization Press for Rubber Sheet Production

Type : Vulcanizer

Price : US$8,000.00-10,000.00

Heating Method : Electric/Thermal Oil/Steam (Customized)

Certificate : CE & ISO9001:2008

Supply Ability : 60set/Month

Customized : Customized

Heating way : Steam or oil,electrical / oil system

Vulcanizing temperature : Adjustable,

Control Method : Automatic Press with PLC

Brand Name : SFC

Packaging Details : Safety Wood or Plywood Crates Packing

Warranty : 1 Year

Place of Origin : Qingdao, China

Payment Terms : T/T,L/C

Structure Type : Frame/Column/Jaw/Heavy Side-Plate (Customized)

Certification : CE, ISO

Model Number : XLB-1300*2000*1

Application : vulcanizing to be final product,

MOQ : 1 set

Delivery Time : 25-35 days

Material : Aluminum alloy

Contact Now

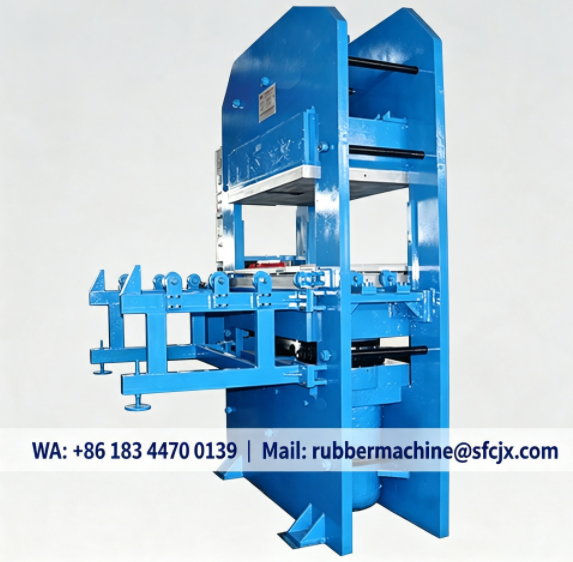

Frame Rubber Vulcanizing Machine with Push-Pull Device

Automatic vertical frame rubber vulcanizing machine with push-pull functionality, CE and ISO9001:2008 certified.

Product Overview

Automatic Vertical Frame Rubber Vulcanizing Machine with Push Pull Functionality

Product Overview

Our CE certified vertical frame rubber vulcanizing machine comes equipped with push pull mould transport functionality. We hold CE ISO9001 and SGS certificates to guarantee full international standard compliance. With more than 20 years of professional experience in rubber machinery manufacturing, we supply a one year quality warranty and permanent long term technical support. Our vulcanizing equipment has been exported to around 126 countries across six continents. Flexible payment terms include L/C and T/T, with machine delivery arranged within 30 days after deposit confirmation.

Key Features

• ISO 9001 certified hydraulic press structure with stable reliable quality

• Machine tonnage range from 50 Ton up to 2500 Ton for shaping all kinds of rubber compounds into finished rubber goods

• Perfectly matched control system and hydraulic station to satisfy global factory buyers

• Computer optimized frame construction using high quality tested steel profiles for maximum structural rigidity and extended service life

• Low noise hydraulic unit with manifold mounted valves for convenient daily maintenance

• Energy saving design; motor automatically stops during rubber curing cycle to reduce power consumption

• Programmable moving speed and curing parameters for flexible optimized production schedules

Technical Parameters

Customizable working pressure: 50 Ton – 2500 Ton

Frame structure: Vertical frame type

Mould system: Automatic push pull material transport

Control mode: PLC automatic control with adjustable curing time temperature and pressure

Heating plate size: Customized according to customer mould requirements

Power supply: 380V 50Hz or customized local voltage

Warranty: 12 months from shipment

Frame Column Type Heat Press Machine Rubber Mat Molding Vulcanization Press for Rubber Sheet Production

Key Features

ISO 9001 certified hydraulic presses ensuring quality assurance
Machines ranging from 50 to 2500 Tons for shaping rubber compounds into finished products
Perfectly matched controls and hydraulic system for complete customer satisfaction
Computer-aided frame design using tested-quality steel profiles for maximum rigidity and longer life
Low noise hydraulic unit with manifold-mounted valves for easy maintenance
Energy-efficient operation with motor stopping during curing period
Programmable speeds and curing parameters for optimized production

Technical Parameters

Type	Total Pressure (MN)	Plate Size (mm)	Daylight (mm)	Layer No.	Piston Stroke (mm)	Plate Unit Area Pressure	Main Motor Power (kw)	Overall Dimension (LWH mm)	Weight (kg)
XLB-DQ120012002	315t	1200*1200	200	2	400	22	3	168513202450	9500
XLB-DQ130020001	560t	1300*2000	400	1	400	21.5	8	200018602500	17000
XLB-Q120025001	750t	1200*2500	400	1	400	25	9.5	256017002780	20000
XLB-Q150020001	1000t	1500*2500	400	1	400	33.5	11	281015503325	24000
XLB-Q200030001	1800t	2000*3000	400	1	400	30	26	290032002860	66000
XLB-Q140057001	2800t	1400*5700	400	1	400	35	43.5	240058003600	110000

Packaging & Protection

Equipment is painted before delivery and wrapped with stretch film to protect the surface finish. Custom wooden packaging is available. Key components such as electronic control boxes are protected with shockproof packaging materials and packed in wooden cases for secure transportation.

Frequently Asked Questions

What does your factory do regarding quality control?
We implement comprehensive quality control throughout production. Every machine is fully assembled and carefully tested before shipment.
What's the machine quality guarantee?
One-year quality guarantee. We use world-famous brand components to ensure optimal machine performance.
Are you able to give installation and commissioning overseas? How long will it take?
Yes, we provide overseas service and technical support (customer covers installation costs). Small machines: 2-3 days. Large production lines: approximately 30 days.
How can I trust you to deliver the right machine as I ordered?
We guarantee delivery of quality machines as confirmed in orders. Our company culture emphasizes innovation, quality, integrity, and efficiency. We have established partnerships with world-renowned rubber manufacturers.
How can we visit your facility?
We are located in Qingdao City, Shandong province, China (Qingdao Liuting Airport). We provide airport pickup services.

Our Services

Custom machine design with engineering drawings for customer confirmation
Production progress photos sent to customers for tracking
Complete documentation including packing list, commercial invoice, and bill of lading
Free technical documentation: foundation DWG, installation drawings, user guides, maintenance manuals, and part drawings
Overseas engineer services and operator training
